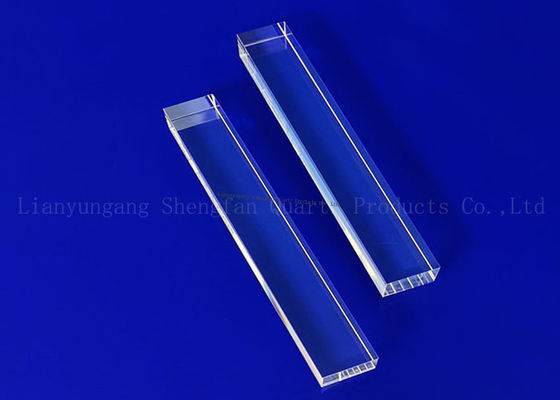

High Temperature And Corrosion Resistant Transparent Quartz Rod Is Used In Printer Equipment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SIO2>99.99% | OD | 3-300mm |
|---|---|---|---|
| Light Transmittance | >92% | Working Temparature | 1100℃ |
| Hardness | Morse 6.5 | Resistance Value | 1000 Times Than Ordinary Glass |
| Type | Clear Quartz Pipe,Laboratory Research Instruments,Opaque Quartz Pipe | Usage | Laboratory Test,chemistry Test,Lab Application/packaging |
| Wall Thickness | 0.5 MM-40 MM | ||
| High Light | 40 MM Quartz Glass rod,TAB Quartz Glass plate |
||
Product Description
TAB High Temperature Step-Press Machine Quartz High Precision High Light Quartz Glass Bar Processing Custom
Fused Silica Capillary Tubing Description:
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
Product Description:
Fused clear silica quartz glass tube is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.
1. High purity :SiO2> 99.99%.
2. Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
3. Health care and environmental protection.
4. No air bubble and no air line.
5. Excellent electrical insulator.
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
Application of standard clear quartz tube:
halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
