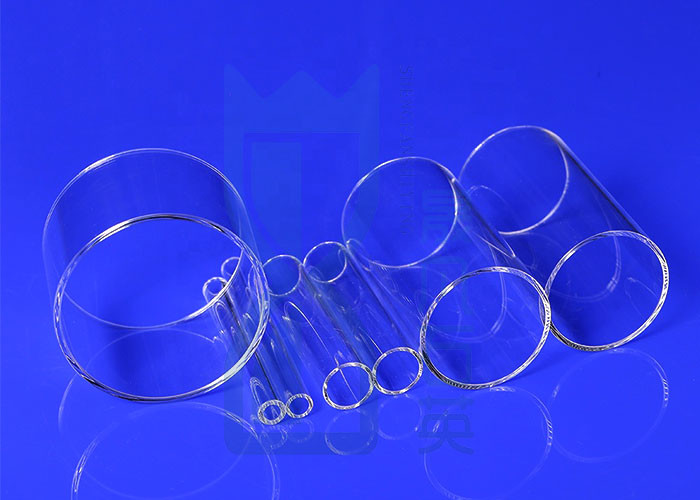

100ml Clear Quartz Glass Test Tube Cylinder For CVD Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Quartz Glass Tube | Material | Pure Quartz Glass |
|---|---|---|---|
| Capacity | 100-850ml | Usage | Home/hotels/restaurant |
| Working Temparature | 1100℃ | Color | Transparent |
| Resistance Value | 1000 Times Than Ordinary Glass | Characters | Make A Pleasant Sound When Cheers |
| High Light | Cylinder Quartz Glass Test Tube,100ml Clear Quartz Glass Test Tube,Quartz Glass Tube For CVD Furnace |
||
Product Description
High Density Fused Silica Capillary Tubing / Custom Glass Tubes Environmental Protection
Fused Silica Capillary Tubing Description:
Fused clear silica quartz glass tube is made of high purity quartz sand with excellent thermal shock stability and high transmittance.
It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.
1. High purity :SiO2> 99.99%.
2. Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
3. Health care and environmental protection.
4. No air bubble and no air line.
5. Excellent electrical insulator.
Application:
1.Quartz glass is the main raw material of the production of bactericidal lamp shell,deep processing to various of lab glassware & instruments and furnace tubes.
2. Light sourcing
3. Semiconductor, electric heating
4. Chemical industries
5. Optical
|
Shengfan Quartz plate characteristic |
|
|
SIO2 |
99.9% |
|
Density |
2.2(g/cm³) |
|
Degree of hardness moh’ scale |
6.6 |
|
Melting point |
1732℃ |
|
Working temperature |
1100℃ |
|
Max temperature can reach in a short time |
1450℃ |
|
Visible light transmittance |
Above 93% |
|
UV spectral region transmittance |
80% |
|
Annealing point |
1180℃ |
|
Softening point |
1630℃ |
|
Strain point |
1100℃ |
The chemical composition of clear quartz glass: (unit: ppm)
|
AL |
Fe |
K |
Na |
Li |
Ca |
Mg |
Cu |
Mn |
Cr |
B |
Ti |
|
5-12 |
0.19-1.5 |
0.71-1.6 |
0.12-1.76 |
0.38-0.76 |
0.17-1.23 |
0.05-0.5 |
0.05 |
0.05 |
<0.05 |
<0.1 |
<1 |
Spectral transmission at 1.0mm thickness:
|
m m |
<220 |
255 |
280 |
315 |
350 |
38 |
590 |
780 |
|
% |
89 |
91 |
93 |
93 |
93 |
93 |
93.2 |
93.4 |
Physical Properties:
|
Density 20°CKg X m-3(X 103) |
2.2 |
|
Coefficient of expansion 25-300°C °C-1(X 10-6) |
0.56 |
|
Softening point(°C) |
1710 |
|
Annealing point(°C) |
1230 |
|
Strain point(°C) |
1140 |
|
Youngs modulus(Pa) |
7.5X105 |
