OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications

10
MOQ
Negotiable
Price
OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Quartz Glass Tube
Material: SIO2>99.99%
OD: 3-300mm
Light Transmittance: >92%
Working Temparature: 1100℃
Hardness: Mose 6.5
Resistance Value: 1000 Times Than Ordinary Glass
Application: UVC Light
Highlight:

UVC Light Quartz Glass Tube

,

Quartz Glass Tube For Semiconductor

,

Quartz Glass Tube Od 300mm
Basic Infomation
Place of Origin: China
Brand Name: shengfan
Certification: ISO9001
Model Number: T-1
Payment & Shipping Terms
Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time: 15 work days
Payment Terms: L/C,T/T
Supply Ability: 100,000 pieces per month
Product Description

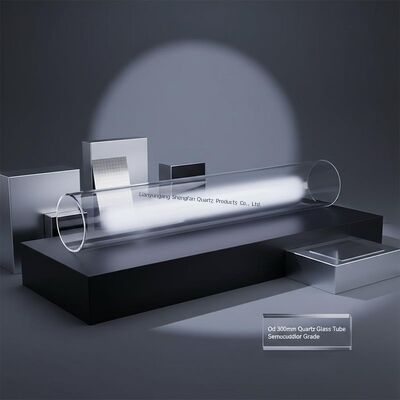

OD 300mm Quartz Glass Tube for Semiconductor Applications
Customized fused clear silica quartz glass tubes manufactured for semiconductor field applications with excellent thermal shock stability and high transmittance.
Product Features
  • High purity: SiO₂ > 99.99%
  • Excellent thermal stability and chemical resistance
  • Acid-resistant and alkali-resistant properties
  • Health care and environmental protection compliance
  • No air bubbles or air lines
  • Superior electrical insulation properties
Applications
Halogen lamps, mercury lamps, single end lamps, automobile lamps, stage lighting, thermoelectric boilers, photocopier lamps, water treatment lamp casings, quartz ware and piping.
Quartz Glass Specifications
Type JGS1 (ZS-1) JGS2 (ZS-2) JGS3 (HS)
Spectral Characteristics 180-2500nm 200-2500nm 260-3500nm
Average Transmittance 90% 85% 85%
Bubble Class 0 2 2
Birefringence 1-2 1-2 1-2
Material Properties
SiO₂ Content 99.9%
Density 2.2 g/cm³
Hardness (Moh's Scale) 6.6
Melting Point 1732℃
Working Temperature 1100℃
Short-term Max Temperature 1450℃
Visible Light Transmittance Above 93%
UV Transmittance 80%

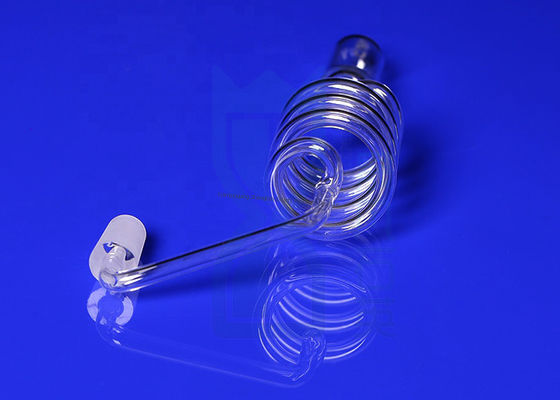

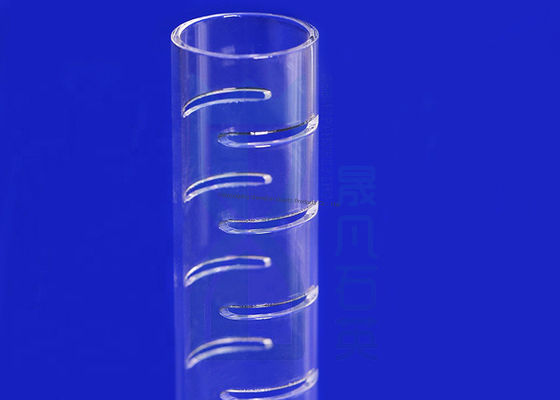

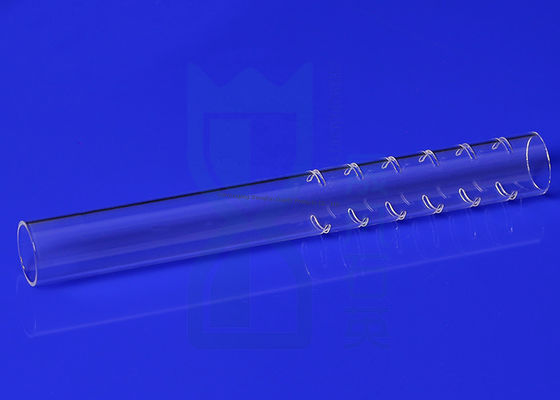

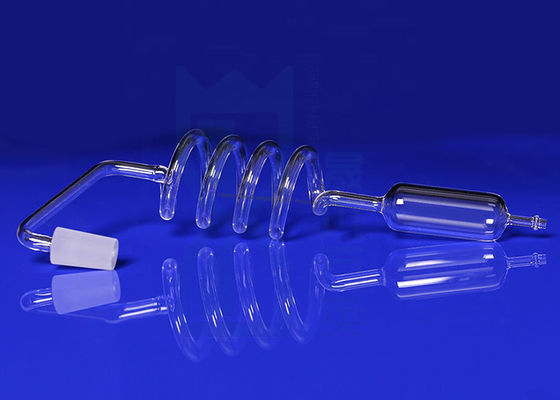

Product Gallery
OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 0 OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 1 OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 2 OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 3 OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 4 OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 5
Company Profile
Lianyungang Shengfan Quartz Product Factory specializes in research, development, and manufacturing of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes, and quartz instruments. Our philosophy centers on technology orientation, quality first, integrity and responsibility, and sustainable operation.
OD 300mm High Temperature Resistance 1100℃ Quartz Glass Tube Customized for Semiconductor Applications 6
Contact Information
LIANYUNGANG SHENGFAN QUARTZ PRODUCTS CO., LTD
TEL: 0086-0518-878938285
Mobile: 0086-19901512909
WeChat: shengfanquartz
Address: No.169 Mingzhu Rd, Economic Development Zone, Donghai County, Lianyungang City, Jiangsu Province, China
Frequently Asked Questions
Q: Can I place a sample order?
A: Yes, we welcome sample orders for quality testing and verification.
Q: What is the delivery time?
A: Delivery within 15 days after receiving deposit.
Q: Is there a minimum order quantity?
A: Low MOQ available - 1 piece for sample checking.
Q: How do I proceed with an order?
A: Share your requirements, receive our quotation, confirm samples, place deposit, and we arrange production.
Q: How are goods shipped and how long does delivery take?
A: DHL, UPS, FedEx, or TNT available for small orders (3-5 days). Airline and sea shipping also available.
