quality Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance factory

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance

Name: Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance
Brand: Lianyungang Shengfan Quartz Product Co., Ltd
SKU: SF221012001
Price: 4.50 USD
Availability: InStock

Brand Name: shengfan

Model Number: SF221012001

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: Negotiable

Price: Negotiable

Supply Ability: 100,000 pieces per month

fused silica tubing

fused quartz tube

glass test tubes

Product Details

Name:	Quartz Glass Tube	Application:	Sources , Semiconductor
Material:	SIO2>99.99%	Feature:	Good Electrical Insulation
Light Transmittance:	>92%	Working Temparature:	1100℃
Hardness:	Mose 6.5	Resistance Value:	1000 Times Than Ordinary Glass
Highlight	Combustion Internal Quartz Glass Tube , Customized Quartz Glass Tube High Temperature , High Durability chemical Quartz Glass Tube

Product Description

Customized Combustion Internal Quartz Glass Tube For High Temperature

Premium Quartz Glass Tube Solutions

Customized size combustion internal quartz glass tube accessories designed for high temperature applications with excellent electrical insulation properties for sources and semiconductor industries.

Primary Applications

Lighting, sources, semiconductor, optical, communications, military, building materials, chemical, mechanical, electrical, environmental protection and other specialized fields.

Material Properties

High Durability
High Heat Resistance
High Corrosion Resistance
Low Thermal Expansion Coefficient

Exceptional Corrosion Resistance

Quartz glass exhibits no chemical reaction with acids except hydrofluoric acid. Its acid resistance is 30 times that of ceramic and 150 times that of stainless steel, with exceptional chemical stability at low temperatures unmatched by any other engineering materials.

Superior Thermal Stability

The low thermal contraction coefficient of quartz glass enables it to withstand severe temperature changes. Quartz glass heated to 1100℃ will not burst when immersed in cold water.

Excellent Light Transmission

Quartz glass maintains good transmittance across all spectral bands from purple to red. Visible light transmittance exceeds 93%, with maximum transmittance over 80% in the ultraviolet spectral region.

Outstanding Electrical Insulation

Quartz glass resistance is 10,000 times that of ordinary materials, maintaining excellent electrical performance even at low temperatures.

Standard Clear Quartz Tube Applications

Halogen lamps, mercury lamps, single end lamps, automobile lamps, stage lighting, thermoelectric boilers, photocopier lamps, water treatment lamp casings, quartz ware and piping systems.

Shengfan Quartz Plate Specifications

Property	Value
SIO2	99.9%
Density	2.2 (g/cm³)
Degree of hardness moh' scale	6.6
Melting point	1732℃
Working temperature	1100℃
Max temperature can reach in a short time	1450℃
Visible light transmittance	Above 93%
UV spectral region transmittance	80%
Annealing point	1180℃
Softening point	1630℃
Strain point	1100℃

Product Gallery

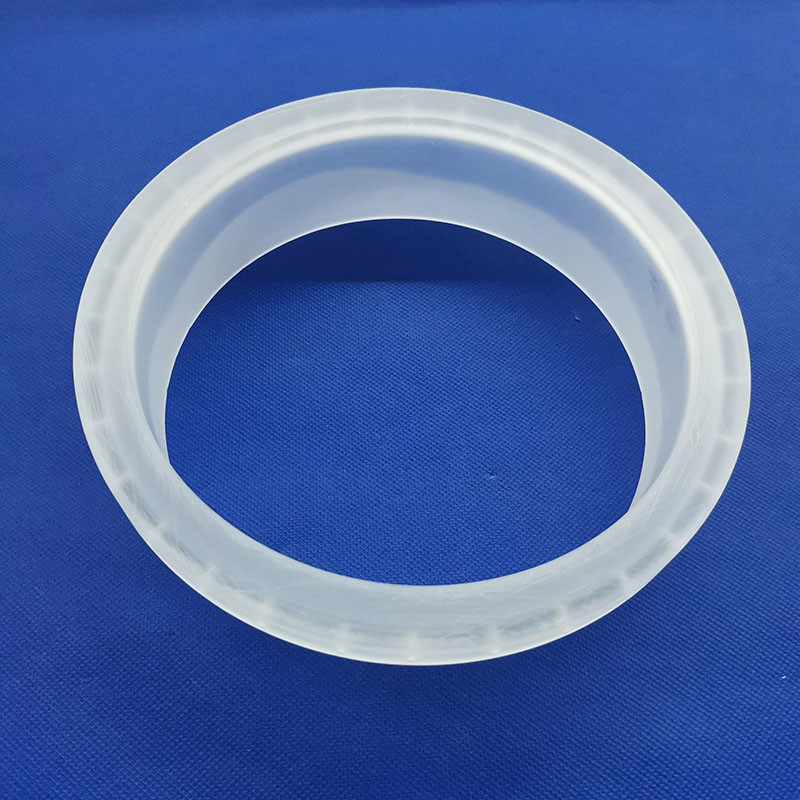

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 0

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 1

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 2

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 3

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 4

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 5

Customized High Temperature Resistant Quartz Glass Tube with Good Electrical Insulation and Corrosion Resistance 6

Company Profile

Lianyungang Shengfan Quartz Product Factory is a professional manufacturer specializing in research and development of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes and quartz instruments. Located in China Crystal Capital - Donghai City, Jiangsu Province, China, just 70 km from Lianyungang port with convenient transportation access.

Covering an area of 1000 square meters with over 30 employees, we achieve annual sales exceeding USD 5.2 million. Guided by our philosophy of Technology Orientation, Quality First, Integrity and Responsibility, and Sustainable Operation, we are dedicated to establishing an international enterprise with standardized and sustainable operational capabilities.
