Features

Specifications

Name: Quartz Glass Tube

Feature: Strong Hardness

Shape: Round

OD: 3-300mm

Light Transmittance: >92%

Working Temparature: 1100℃

Color: Transparent

Resistance Value: 1000 Times Than Ordinary Glass

Highlight:

Quartz Abrasive Machining Abnormity

ISO9001 Quartz Abnormity

3mm OD Quartz Abnormity

Basic Infomation

Place of Origin: China

Brand Name: shengfan

Certification: ISO9001

Model Number: T-1

Payment & Shipping Terms

Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet

Delivery Time: 15 work days

Supply Ability: 100,000 pieces per month

Gallery

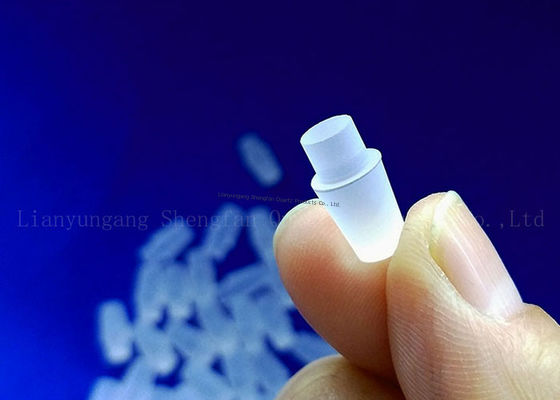

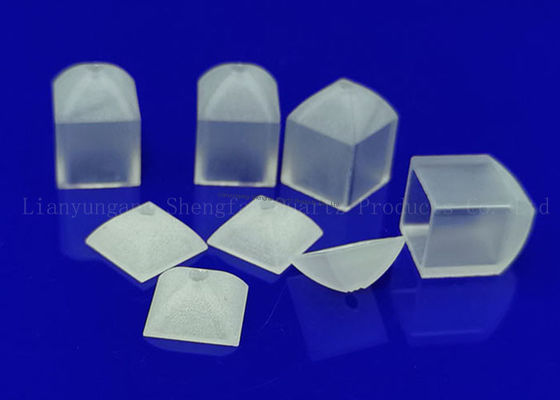

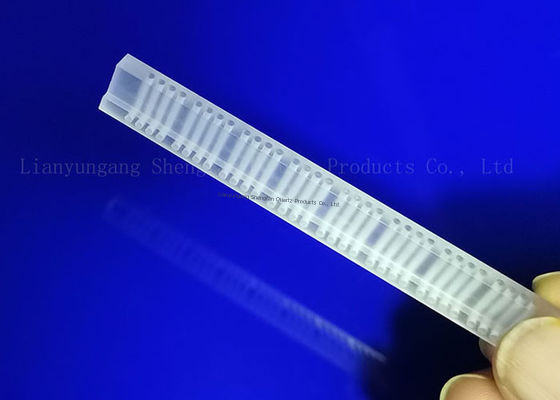

ISO9001 Certified 3mm OD High Temperature Resistant Quartz Glass Tube with High Light Transmittance

Product Description

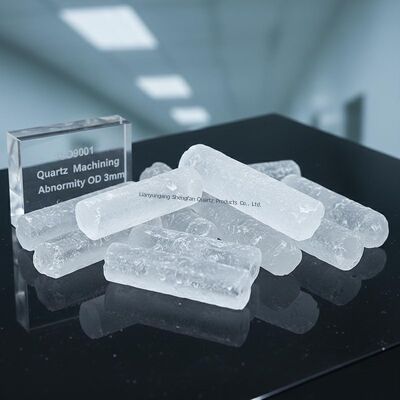

ISO9001 Quartz Abrasive Machining Abnormity OD 3mm

Quartz Glass Laboratory Instrument Quartz Flower Basket Quartz Beaker Distillation Flask Test-Tube Crucible Utensils Pro

Quartz Glass Tube Description

High purity made of 99.99% pure quartz
Strong Hardness, Can reach Morse level 7
High temperature resistance, can work under 1200°C continuously, and in short time can even work under 1500°C
Acid and Alkali resistance. Except Hydrofluoric acid, JD Quartz Glass tube does not react with any acid
Electric insulation, it is 10,000 times of usual glass
High light transmittance, ranging from 85%-95% depending on different spectrum
Excellent thermal shock stability, Small thermal expansion coefficient of only 5.5×10⁻⁷/℃
Control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM, 2 PPM

Quartz Glass Tube Features

High Temperature Resistant

Quartz glass hardening temperature about 1730℃. Can be used for a long time under 1100℃. The highest temperature can reach 1450℃.

Shengfan Quartz Plate Characteristics

Property	Value
SIO₂	99.9%
Density	2.2 (g/cm³)
Degree of hardness moh' scale	6.6
Melting point	1732℃
Working temperature	1100℃
Max temperature can reach in a short time	1450℃
Visible light transmittance	Above 93%
UV spectral region transmittance	80%
Annealing point	1180℃
Softening point	1630℃
Strain point	1100℃

Good Pervious to Light

Quartz glass has good transmittance in all spectral bands from purple to red. The visible light transmittance is above 93% specially in the ultraviolet spectral region. And the maximum transmittance is over 80%.

Type	JGS1(ZS-1)	JGS2(ZS-2)	JGS3(HS)
Spectral characteristics	180-2500nm	200-2500nm	260-3500nm
The average transmittance	90%	85%	85%
Bubble class	0	2	2
Birefringence	1-2	1-2	1-2
Grain structure	1	2	2
Fringe	1-2	2	2
Uniformity	1-2	2	2
Fluorescence	1	2	2
Radiation Performance	Does not change color	Sight discoloration	Change color

Good Electrical Insulation

The resistance of quartz glass is 10,000 times that of ordinary glass and has good electrical performance even at low temperature.

Applications of Standard Clear Quartz Tube

Halogen lamp, mercury lamp, single end lamp, automobile lamp, stage lamp, thermoelectric boiler, photocopier lamp, water treatment lamp casing, quartz ware and pipe.

Quartz Glass Tube Images

Company Profile

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate, quartz tube, quartz flange, quartz ring, cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.

Covering an area of 1000 square meters, we now have over 30 employees, an annual sales figure exceeding USD 5.2 million.

With the philosophy of Technology Orientation, Quality First, Integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
