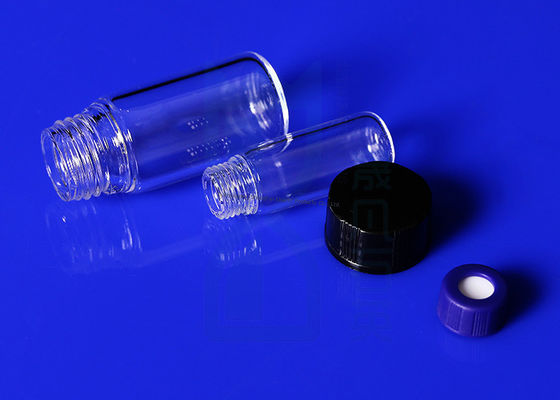

Purity Transparent Silica Glass Reagent Bottle Fused With Screw Caps 2.2g / Cm3
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Reagent Bottle With Screw Cap||Material||SIO2>99.9%|
|Acid Tolerance||30 Times Than Ceramics,150 Times Than Stainless Steel||Melt Point||1750℃|
Transparent Silica Glass Reagent Bottle,
2.2g/cm3 Silica Glass Reagent Bottle,
Silica Reagent Bottle With Screw Caps
1. SiO2> 99.99% ,high purity quartz tube.
2. Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3. Excellent visual and chemical performance .
4. Without surface coating and infectant.
5. Health care and environmental protection.
6. Any dimension can be made.
7. CE.RoHs SGS approved.
The advantages of Customized High Quality Clear Quartz Glass Flask are:
1. Low thermal conductivity,
2. Small expansion coefficient,
3. High temperature proof,
4. Excellent thermo stability and cost lower than other quartz glass.
5. It has been widely used as long nozzle and immersion nozzle brick for the continuously flood steel,
Application of quartz Reagent Bottle
Chemical experiment, Reaction apparatus, Oven haeting
|Shape||Circular / Round|
|Application||Optics quartz windows|
|Resistance Value||1000 times than ordinary glass|
Material properties of transparent quartz reagent bottle :
|Compressive Strength||>1100Mpa||Coefficient of thermal expansion||5.5×10-7cm/cm.°C|
|Bending Strength||67Mpa||Hot work temperature||1750~2050°C|
|Tensile Strength||48.3Mpa||The temperature for a short time||1200°C|
|Poisson's Ratio||0.14~0.17||The temperature for a long time||1100°C|
|Shearing Modulus||31000Mpa||Dielectric Strength||250~400Kv/cm|
|Moths Hardness||5.3~6.5(Moths Scale)||Dielectric Constant||3.7~3.9|
|Deformation Point||1350°C||Dielectric absorption coefficient||<4×104|
|Specific Heat(20~350°C)||670J/kg °C||Dielectric loss coefficient||<1×104|
|Density||2.2x103 kg/m3||Hardness||5.5 - 6.5 Mohs' Scale 570 KHN 100|
|Design Tensile Strength||4.8x107 Pa (N/m2) (7000 psi)||Design Compressive Strength||Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730|
|Bulk Modulus||3.7x1010 Pa (5.3x106 psi)||Rigidity Modulus||3.1x1010 Pa (4.5x106 psi)|
|Softening Point||1730°C||Annealing Point||1215°C|
