1-3mm thickness high transmittance quartz glass plate sheet quartz window lens
Product Details
| Type: | Clear Quartz Plate | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 0.5-100mm | Shape: | Square |
| Processing Service: | Bending, Welding, Punching, Cutting, Polishing | Product Name: | Quartz Plate |
| Material: | SIO2>99.99% | Surface Quality: | 60/40 |
| Density: | 2.2g/cm3 | Working Temparature: | 1150℃ |
| Hardness: | Morse 6.5 | Melt Point: | 1750-1850℃ |
| Acid Tolerance: | 30 Times Than Ceramics,150 Times Than Stainless Steel | Size: | Customized |
| Annealing Point: | 1180℃ | Port: | Shanghai And Qindao Port |
| Highlight |
high transmittance quartz glass plate,quartz window lens |
||
Product Description

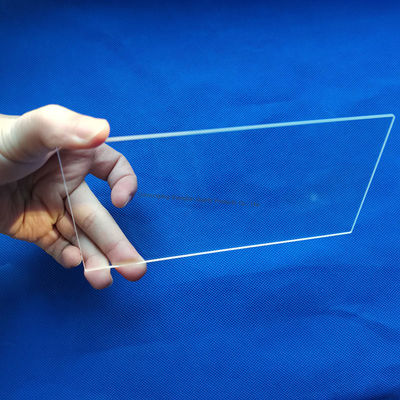

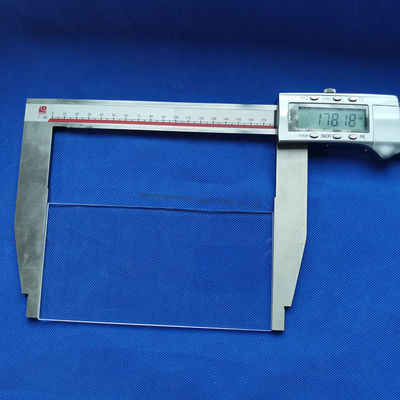

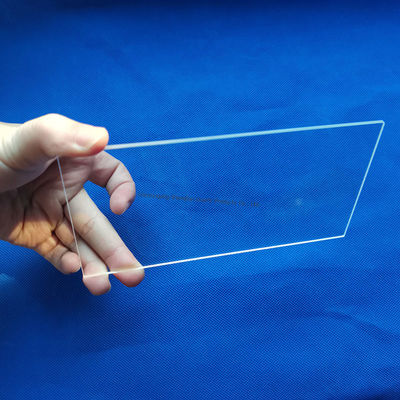

1-3mm thickness high transmittance quartz glass plate sheet quartz window lens
|
Shengfan Quartz plate characteristic
|
|
| *Brand | shengfanquartz |
| *SIO2 | 99.99% |
| *Density | 2.2(g/cm³) |
| *Degree of hardness moh’ scale | 6.6 |
| *Melting point | 1732℃ |
| * Working temperature | 1100℃ |
| *Annealing point | 1180℃ |
| *Softening point | 1630℃ |
| Specification | |
| Color | Transparent |
| Shape | Circular / Round |
| Standard | JGS1,JGS2,JGS3 |
| Material | 99.99% sio2 |
| Diameter | 1-800mm |
| Thickness | 0.2-100mm |
| Application | Optics quartz windows |
| Density | 2.2(g/cm³) |
| Light Transmittance | >92% |
| Hardness | Mose 6.5 |
| Resistance Value | 1000 times than ordinary glass |
| Tolerance | ±0.01 | ±0.05mm | ±0.1mm |
| Surface treatment | 60/40 | 40/20 | |
| Shape | square amd circle | custom shape | any shape can be customed |
| Application case | Remote control window | vacuum cup | germicidal lamp |
Applied range:
Our Services & Strength
Product Highlights
Product Description 1-3mm thickness high transmittance quartz glass plate sheet quartz window lens Shengfan Quartz plate characteristic *Brand shengfanquartz *SIO2 99.99% *Density 2.2(g/cm³) *Degree of hardness moh’ scale 6.6 *Melting point 1732℃ * Working temperature 1100℃ *Annealing point 1180℃ ...
