Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source

  • Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source
  • Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source
Place of Origin China
Brand Name Shengfan quartz
Model Number P-1
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time 3-10 days
Supply Ability 100000 pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SIO2>99.99% Density 2.2(g/cm3)
Light Transmittance >92% Hardness Morse 6.5
Working Temperature 1100℃ Melt Point 1750-1850℃
High Light

clear glass plates

,

fused silica plate
Leave a Message
Product Description

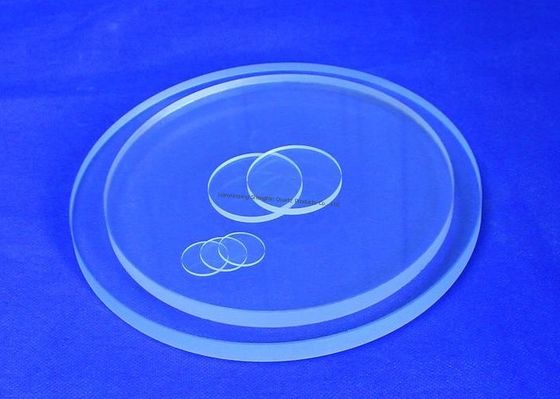

Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source



Product description:

Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.



Brand shengfanquartz
SIO2 99.9%
Density 2.2(g/cm³)
Degree of hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Annealing point 1180℃
Softening point 1630℃



Quartz Characteristic
SIO2 99.99%
Density 2.2(g/cm3)
Degree of the hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Acid tolerance 30 times than ceramic,150 times than stainless
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Resistance value 10000 times than ordinary glass
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃






Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source 0



Application of quartz plate:



Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.



Company profile:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.

Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.

With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.



Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source 1

Professional Quartz Glass Plate , Fused Quartz Glass For Electric Light Source 2

LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO., LTD
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.



Packaging Details
Packing for HM heat resistant high transparent furnance sight quartz glass plate
1.paper carton/wooden case/plastic Air-Cusshion Film/Foam material
2.Or we could pack the goods as your requirements



FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
