Metallurgy Industry Quartz Glass Plate Customizable Shape For Optical Instrument

Place of Origin CHINA
Brand Name SF
Certification ISO9001
Model Number QGP-2
Minimum Order Quantity 10
Price Negotiable
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time 5-15 work days
Payment Terms L/C, T/T, D/P, D/A, Western Union
Supply Ability 100000 pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SIO2 Working Temparature 1200℃
Melt Point 1850℃ Shape Square/Round/Any Shape
Thickness 1mm-50mm Color Milky White
High Light

clear glass plates

,

fused silica plate

Leave a Message
Product Description

Product description:



Quartz glass is an extremely versatile material used in a range of different applications. It has outstanding thermal properties, excellent optical transmission, with good electricaland corrosion performance.



Milky White quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.

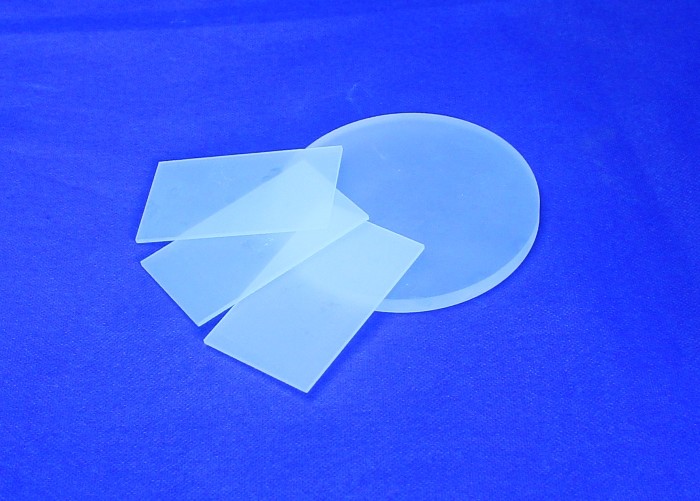

Metallurgy Industry Quartz Glass Plate Customizable Shape For Optical Instrument 0

Product Specification:

1. high temperature resistant, quartz glass plate can work under 1200°C continuously,and in short time can even work under 1450°C,

its softening temperature is 1650°C,and the melting temperature is 1750-1800°C.

2. Corrosion resistant, Except hydrofluoric acid, Quartz Plate Of Optical Grade do not react with anyacid and base except hydrofluoric acid.the stability is

30 tims of the ceramic,and 150 times of stainless steel .

3. Excellent thermal shock stability

4. High transmission to 85%

5. Electric insulation ,it is 10000 times of usual glass


Quartz Characteristic
SIO2 99.99%
Density 2.2(g/cm3)
Degree of the hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Acid tolerance 30 times than ceramic,150 times than stainless
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Resistance value 10000 times than ordinary glass
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃


Company Introduction:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

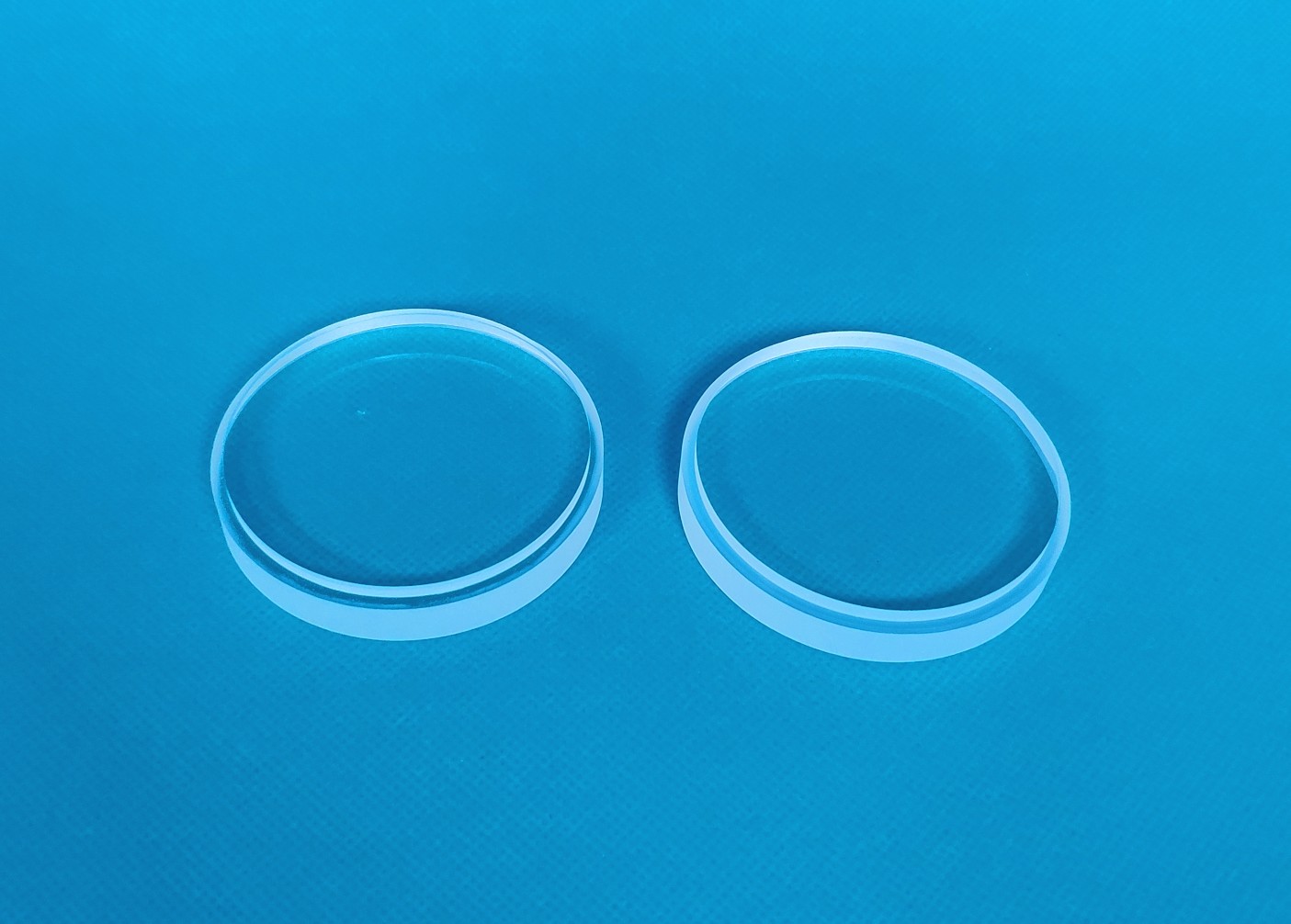

Metallurgy Industry Quartz Glass Plate Customizable Shape For Optical Instrument 1
