Chemical Quartz Glass Sheet , Fused Glass Plates Ground Polished Heat Resistant

Place of Origin China
Brand Name shengfan
Certification ISO9001
Model Number QP-1
Minimum Order Quantity 10 pieces
Price Negotiable
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time 5-15 work days
Supply Ability 100,000 pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Perforated Quartz Glass Material SIO2
Hardness Morse 6.5 Working Temperature 1100℃
Surface Quality 20/40 Or 40/60 Dieletric Strength 250~400Kv/cm
Light Transmittance >92%
Highlight

quartz glass products

,

fused silica glass

Leave a Message
Product Description

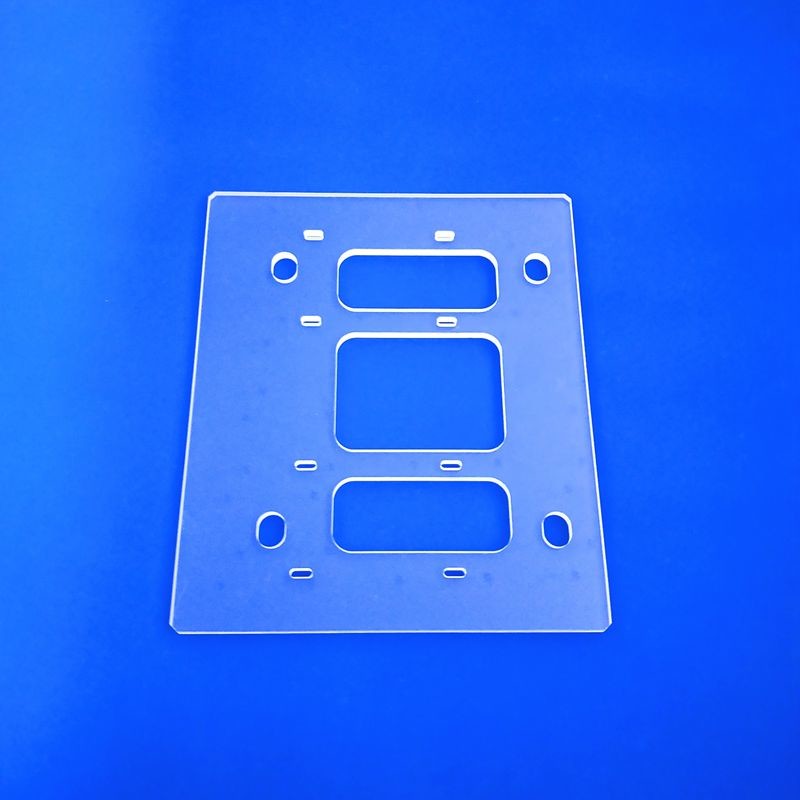

Chemical Quartz Glass Sheet , Fused Glass Plates Ground Polished Heat Resistant



Product description:



Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.



Quartz glass has excellent physical and chemical properties:high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.



JGS1(ZS-1)

JGS2(ZS-2)

JGS3(HS)

Spectral characteristics

180-2500nm

200-2500nm

260-3500nm

The average transmittance

90%

85%

85%

Bubble class

0

2

2

Birefringence

1-2

1-2

1-2

Grain structure

1

2

2

Fringe

1-2

2

2

Uniformity

1-2

2

2

Fluorescence

1

2

2

Radiation Performance

Does not change clolor

Sight discoloration

Change





Shengfan Quartz plate characteristic

SIO2

99.9%

Density

2.2(g/cm³)

Degree of hardness moh scale

6.6

Melting point

1732℃

Working temperature

1100℃

Max temperature can reach in a short time

1450℃

Visible light transmittance

Above 93%

UV spectral region transmittance

80%

Annealing point

1180℃

Softening point

1630℃

Strain point

1100℃






Application of quartz plate:



Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.

Chemical Quartz Glass Sheet , Fused Glass Plates Ground Polished Heat Resistant 0
Chemical Quartz Glass Sheet , Fused Glass Plates Ground Polished Heat Resistant 1
Chemical Quartz Glass Sheet , Fused Glass Plates Ground Polished Heat Resistant 2
Chemical Quartz Glass Sheet , Fused Glass Plates Ground Polished Heat Resistant 3



Company profile:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China.



Over the years,the company constantly introduce high-precision processing equipment,like CNC / Laser equipment / glass milling and grinding machine to insure the accuracy of the products.



With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
