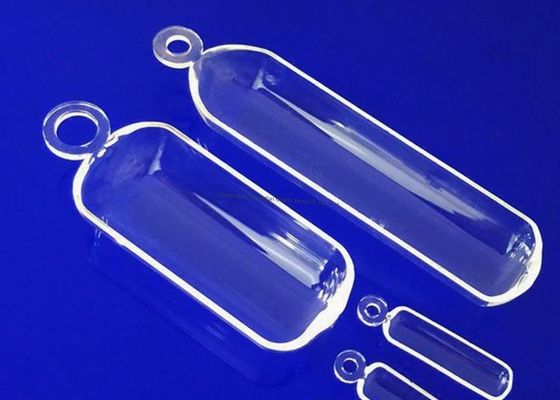

High Precision Quartz Glass Products ,High Temperature Resistance Fused Quartz Boat
Product description:
Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.
Quartz glass has excellent physical and chemical properties:high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.
Products range:
1.Quartz tube:outer diameter Φ2-450mm,thickness 0.5-20mm
2.Quartz rod (1.5-80mm)
3.Quartz plate (various shapes and
specification,scrubs,Transparency,drilling)
4.Quartz instruments (flask,test tube,beaker, quartz boat)
5.Processing all type of special shaped and customized instruments.
Application of quartz plate:
Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
| Quartz Characteristic |
| SIO2 |
99.99% |
| Density |
2.2(g/cm3) |
| Degree of the hardness moh’ scale |
6.6 |
| Melting point |
1732℃ |
| Working temperature |
1100℃ |
| Max temperature can reach in a short time |
1450℃ |
| Acid tolerance |
30 times than ceramic,150 times than stainless |
| Visible light transmittance |
Above 93% |
| UV spectral region transmittance |
80% |
| Resistance value |
10000 times than ordinary glass |
| Annealing point |
1180℃ |
| Softening point |
1630℃ |
| Strain point |
1100℃
|
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
