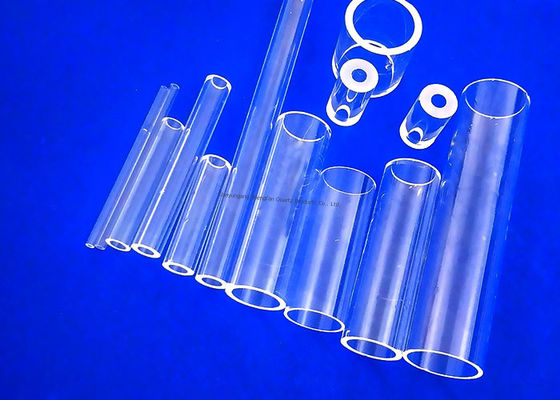

OEM ODM Quartz Test Tube , Clear Test Tubes Customizable UV Quartz Tube
Product Details
| Product Name: | Quartz Glass Tube | Material: | Fused Quartz |
|---|---|---|---|
| Working Temperature: | 1100℃ | Hardness: | Morse 6.5 |
| Highlight |
glass capillary tube,flat bottom test tubes |
||
Product Description
OEM ODM Quartz Test Tube , Clear Test Tubes Customizable UV Quartz Tube
Fused Silica Capillary Tubing Description:
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
Material Properties:
1. High purity
2. High duribility
3. High Temperature Resistance(working temperature 1100℃)
4. Flame polished
5. Acid and alkali resistance
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
Further processing:
Flame polishing/optical polishing/grind/bending/fire polished
We adopt continue melting method,rotation method, flame melting method to produce various kinds of transparent.Meanwhile,we have Arc quartz crucible workshop,old process workshop, fire process workshop, so that we can accept higher requirements to customize all kinds of quartz glass products, such as Quartz tube, Quartz plate, Quartz crucible, Quartz flange, Furnace quartz tube, Quartz boat, Laboratory quartz instruments, Quartz heater and other related quartz glass products.These products are widely used in semiconductor, photovoltaic, infrared heating, flight, chemical, and large colleges and universities in the laboratory and other industry fields.
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO. LTD
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
