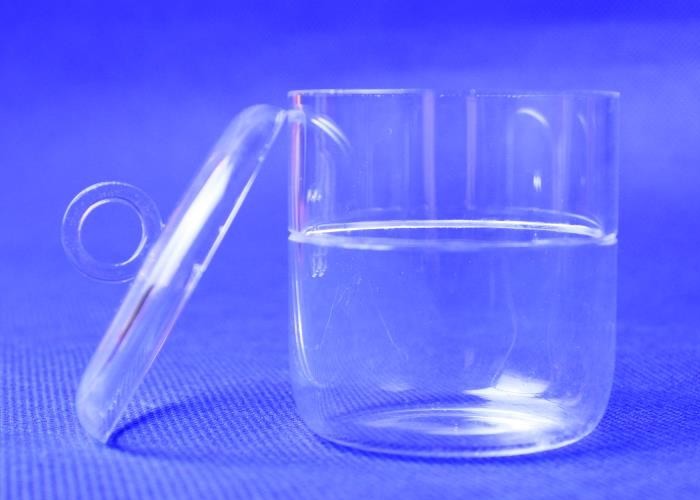

Eco Friendly Quartz Glass Crucible Fast Heat Conduction Low Energy Consumption
Product Details
| Sio2: | 99.99% | Working Temparature: | 1200℃ |
|---|---|---|---|
| Melt Point: | 1750-1850℃ | Usage: | Laboratory,biology,medical |
| Color: | Transparent | ||
| Highlight |
fused quartz crucibles,fused silica crucible |
||
Product Description
Product description:
1. Purity:
SiO2 content is more than 99.9%, transparent quartz glass tube can reaches above 99.95%.
2. Temperature :
Softening point temperature is about 1730 degrees Celsius ,1150 degrees Celsius in a long time used ,short-time maximum use temperature is up to 1450 degrees Celsius.
3. Anti corrosion:
Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials.
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
The advantages of Customized High Quality Clear Quartz Glass Flask are:
1. low thermal conductivity,
2. small expansion coefficient,
3. high temperature proof,
4. excellent thermo stability and cost lower than other quartz glass.
5. It has been widely used as long nozzle and immersion nozzle brick for the continuously flood steel,
Application of quartz labware
Chemical experiment, Reaction apparatus, Oven haeting
