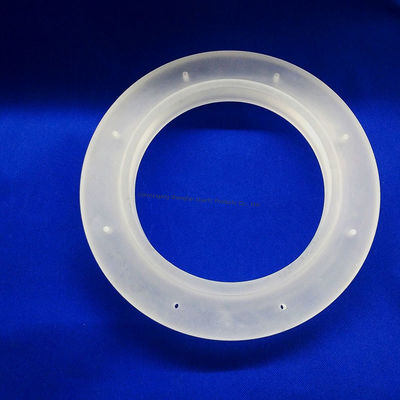

Environmental Protection Quartz Tube Flange 99.99%-99.9999% Material
Product Details
| Name: | Quartz Tube Flange | Feature: | Environmental Protection |
|---|---|---|---|
| Application: | Industry | Density: | 2.2g/cm3 |
| Material: | 99.99%-99.9999% Material | Working Temperature: | 1100℃ |
| UV Transmittance: | 80% | Electrical Resistivity: | 7x107 Ohm Cm (350°C) |
| Highlight |
quartz tube heating element,vertical tube flange |
||
Product Description
Environmental Protection Quartz Tube Flange 99.99%-99.9999% Material
Quartz Tube Flange Introduction
1. High purity
2. Strong Hardness, Can reach Morse level 7.
3. High temperature resistance, can work under 1200°C continuously,and in short time can even work under 1500°C.
4. Acid and Alkali resistance
Except hydrofluoric acid, quartz glass does not react with any acid and base except
hydrofluoric acid. The stability is 30 times of the ceramic, and 150 times of stainless steel
5. Electric insulation, it is 10000 times of usual glass.
6. High light transmittance , it is different from 85%-95% depend on different spectrum.
7. Excellent thermal shock stability ,Small thermal expansion coefficient,it is only 5.5×10-7/℃
8. control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM ,2 PPM.
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Quartz Tube Flange Feature
HGH TEMPERATURE RESISTANT
Quartz glass hardening temperature about 1730℃.
Can be used for a long time under 1100℃.
The highest temperature can reach 1450℃.
CORROSION RESISTANT
In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
Which can not be compared with any other engineering materials.
GOOD THERMAL STABILITY
The thermal contraction coefficient of quartz glass.
Can suffer severe temperature changes.
The quartz glass heated to 1100℃
also will not burst into cold water.
Quartz Tube Flange Pictures
