Customized Fused Silica Glass Flange , Quartz Glass Tube Corrosion Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fused Silica Glass Flange | Size | Customized |
|---|---|---|---|
| Application | Optical Instrument | Density | 2.2g/cm3 |
| Feature | Corrosion Resistance | UV Transmittance | 80% |
| High Light | quartz tube heating element,vertical tube flange |
||
Product Description
Customized Fused Silica Glass Flange , Quartz Glass Tube Corrosion Resistance
Fused Silica Glass Flange description:
Quartz glass is a special glass, it only contain one single component of silica. Usually, we called silicate glass, quartz glass, fused silica, fused quartz, synthetic fused silica.
Quartz glass has a very low coefficient of thermal expansion, high temperature resistance, excellent chemical stability, excellent electrical insulation, low and stable ultrasonic delay performance, the best UV-Vis spectral performance and visible and near infrared spectroscopy Performance, and has a higher than ordinary glass mechanical properties.
Quartz glass is one of the indispensable excellent materials in modern technology, such as space technology, atomic energy industry, defense equipment, automation system, and semiconductor, metallurgy, chemical industry, electric light source, communication, light industry, building materials and so on.
Fused Silica Glass Flange Feature
CORROSION RESISTANT
In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
Which can not be compared with any other engineering materials.
GOOD THERMAL STABILITY
The thermal contraction coefficient of quartz glass.
Can suffer severe temperature changes.
The quartz glass heated to 1100℃
also will not burst into cold water.
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
GOOD PERVIOUS TO LIGHT
Quartz glass has good transmittance in all spectral bands from purple to red.
The visible light transmittance is above 93% specially in the ultraviolet spectral region.
And the maximum transmittance is over 80%.
GOOD ELECTRICAL INSULATION
The resistance of quartz glass is 10,000 times that of ordinary and has good electrical performance even at low temperature

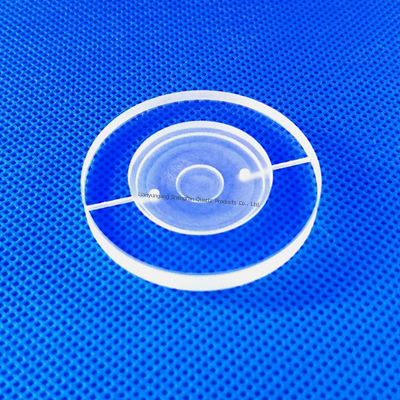

Fused Silica Glass Flange Pictures
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
