Transpaprent Clear Quartz Glass Tube Good Spectral Transmission SiO2> 99.99%
Product Details
| Name: | Quartz Glass Tube | Feature: | Transpaprent |
|---|---|---|---|
| OD: | 3-300mm | Light Transmittance: | >92% |
| Hardness: | Mose 6.5 | ||
| Highlight |
fused quartz tube,fused silica tubing |
||
Product Description
Transpaprent Clear Quartz Glass Tube Good Spectral Transmission SiO2> 99.99%
Quartz Glass Tube Description:
This is transpaprent clear fused quartz glass tube available as continuous machine drawn and automatic controlled tubing. Transmittance of visible light>90%.This glass had the typical characteriastics of high purity, good spectral transmission, well controlled dimension and lower OH and so on. It serves as the first choice of heat resistant material for halogen lamps, mercury lamps, metal halide lamps and other quartz lamps.
This glass can be supplied in the range of 1.50-600mm outside diameter, 0.3-30mm wall thickness and 10-6000mm length. OH-content can be controled within 20ppm15ppm10ppm5ppm2ppm according to the requirement of customers. Exhaust tubes with good CPK are suitable for high-speed streamline production.
And further processing of trim cutting, fire polishing, bending and pinching and etc. can be done according to the requirement of customers.
Quartz Glass Tube Feature
HIGH TEMPERATURE RESISTANT
Quartz glass hardening temperature about 1730℃.
Can be used for a long time under 1100℃.
The highest temperature can reach 1450℃.
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
CORROSION RESISTANT
In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
Which can not be compared with any other engineering materials.
GOOD ELECTRICAL INSULATION
The resistance of quartz glass is 10,000 times that of ordinary and has good electrical performance even at low temperature
Quartz Glass Tube Application
halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.

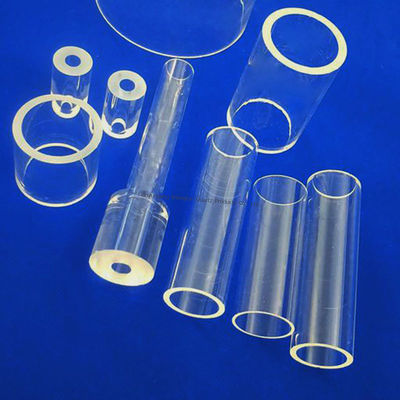

Quartz Glass Tube Pictures
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
