Test Drying Plate Fused Silicon 1250℃ Science Lab Glassware

Place of Origin China
Brand Name shengfan
Certification ISO9001
Model Number QL-1
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time 5-15 work days
Payment Terms L/C, T/T
Supply Ability 10,000 pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fused Silicon Working Temperature 1250℃
Acid Tolerance 30 Times Than Ceramics Hardness Morse 6.5
Application Laboratory Test Color Transparent
Highlight

1250℃ Science Lab Glassware

,

1250℃ Fused Silicon Drying Plate

,

morse 6.5 Science Lab Glassware

Leave a Message
Product Description

Product description:

1. SiO2> 99.99% ,tubing fused quartz
2. Operating Temperature: 1250℃
3. Excellent visual and chemical performance .
4. without surface coating and
infectant .
5. Health care and environmental protection.
6. Any specification can be made.

7. Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials.

Shengfan Quartz plate characteristic
SIO2 99.9%
Density 2.2(g/cm³)
Degree of hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃



  JGS1(ZS-1) JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0 2 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color

The advantages of Customized High Quality Clear Quartz Glass Flask are:
1. low thermal conductivity,
2. small expansion coefficient,
3. high temperature proof,
4. excellent thermo stability and cost lower than other quartz glass.
5. It has been widely used as long nozzle and immersion nozzle brick for the continuously flood steel,

Application of quartz labware

Chemical experiment, Reaction apparatus, Oven haeting

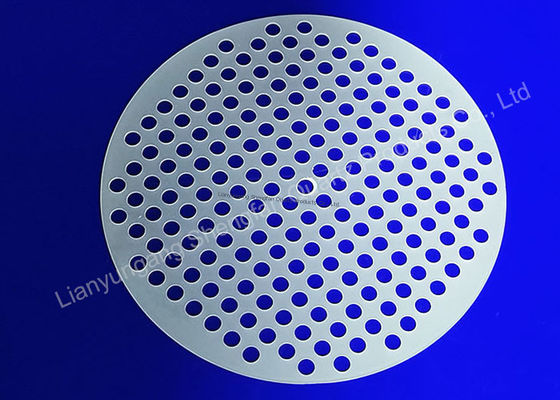

Test Drying Plate Fused Silicon 1250℃ Science Lab Glassware 0

Test Drying Plate Fused Silicon 1250℃ Science Lab Glassware 1

Test Drying Plate Fused Silicon 1250℃ Science Lab Glassware 2Test Drying Plate Fused Silicon 1250℃ Science Lab Glassware 3

Company profile:



Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.



Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.



With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

Test Drying Plate Fused Silicon 1250℃ Science Lab Glassware 4
