Customized Diameter Clear Fused Quartz Glass Rod High Precision Optical Quartz Glass Light Guide Rod
Product Details
| Product Name: | Quartz Glass Rod | Material: | SIO2>99.99% |
|---|---|---|---|
| Density: | 2.2g/cm3 | Light Transimittance: | 92% |
| Hardness: | Morse 6.5 | Working Temparature: | 1150℃ |
| Color: | White,Transparent | Tolerance: | ±0.02mm |
| Sample: | Customized | ||
| Highlight |
Customized Diameter Quartz Glass Rod,Fused Quartz Glass Rod,Clear Fused Quartz Rod |
||
Product Description
Product description:

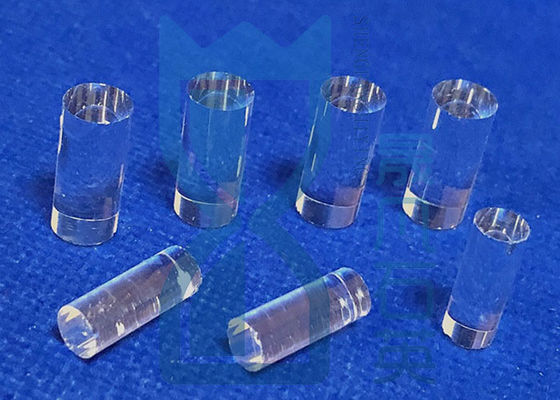

Quartz glass rod is made of fused quartz in special industrial technology glass which is a very good base material.
Quartz glass has excellent physical and chemical properties:high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.
Application of quartz plate:
Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
Shengfan Quartz plate characteristic:
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
Product display:
production flow:
Packing & Delivery:
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.Over the years,the company constantly introduce high-precision processing equipment,like CNC / Laser equipment / glass milling and grinding machine to insure the accuracy of the products.
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Q5. How do you ship the goods and how long does it take to arrive?
A:DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.Airline and sea shipping are also available.
