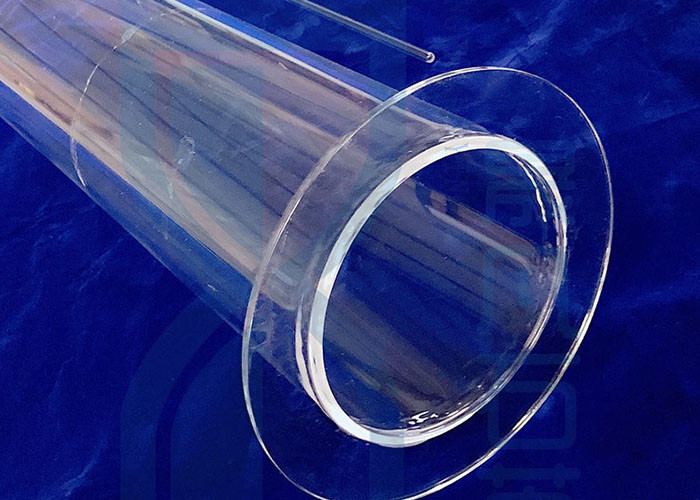

OD300mm SIO2 Quartz Glass Tube For Tube Furnace Flange
Product Details
| Product Name: | Quartz Glass Tube | Material: | SIO2>99.99% |
|---|---|---|---|
| OD: | 3-300mm | Light Transmittance: | >92% |
| Working Temparature: | 1100℃ | Hardness: | Mose 6.5 |
| Resistance Value: | 1000 Times Than Ordinary Glass | ||
| Highlight |
SIO2 quartz glass tube,OD300mm quartz glass tube,quartz SIO2 glass tube |
||
Product Description
Product Description:
Fused clear silica quartz glass tube is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.
Fused Silica Capillary Tubing Description:
1. High purity :SiO2> 99.99%.
2. Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
3. Health care and environmental protection.
4. No air bubble and no air line.
5. Excellent electrical insulator.
Application of standard clear quartz tube:
halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.
Shengfan Quartz plate characteristic:
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO.LTD
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
