Uv Optical Fused Silica Morse 6.5 Quartz Glass Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Quartz Glass Plate | Material | SIO2 |
|---|---|---|---|
| Hardness | Morse 6.5 | Working Temperature | 1100℃ |
| Surface Quality | 20/40 Or 40/60 | Dieletric Strength | 250～400Kv/cm |
| Light Transmittance | >92% | ||
| High Light | morse 6.5 quartz glass plate,morse 6.5 fused glass plate |
||
Product Description
Product Description:
Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.
Quartz glass has excellent physical and chemical properties: high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.

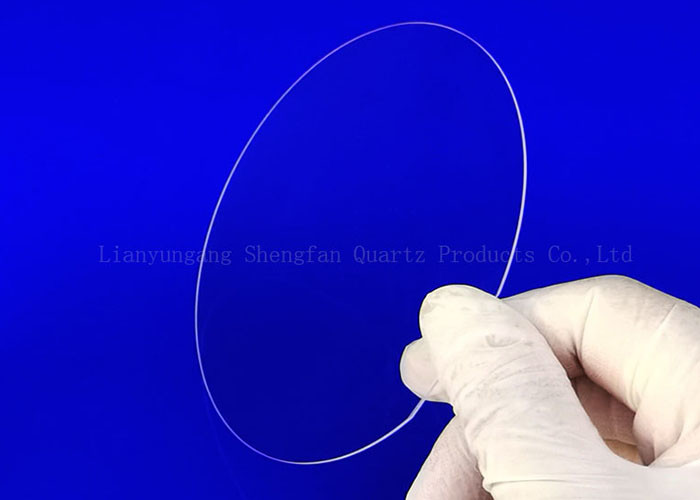

Quartz Plate:

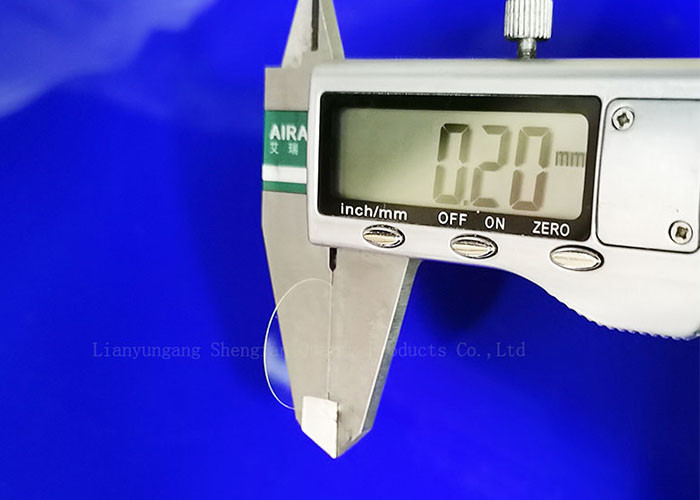

1.Translucence Quartz Glass thickness 0.3-30mm, OD: 1-500mm
2.Thickness Tolerance: +/-0.1mm
3.Raw Material: Quartz , SiO2: >=99.99%
4.Color : Clear , Translucence.
5.Surface quality :40/20 60/40
6.Transmittance >90%
7.Sharpe: Square , Circle, Can make the size and shape according to customer's require.
Products range:
1.Quartz tube:outer diameter Φ2-450mm,thickness 0.5-20mm
2.Quartz rod (1.5-80mm)
3.Quartz plate (various shapes and
specification,scrubs,Transparency,drilling)
4.Quartz instruments (flask,test tube,beaker, quartz boat)
5.Processing all type of special shaped and customized instruments.
Support customization:
Their size can designed according your need and can be grinded and polishing the sides according your need!
| Tolerance |
±0.01
|
±0.05mm | ±0.1mm |
| Surface treatment | 60/40 | 40/20 | |
| Shape | square amd circle | custom shape | any shape can be customed |
| Application case | Remote control window | vacuum cup | germicidal lamp |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Company Introduction:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
