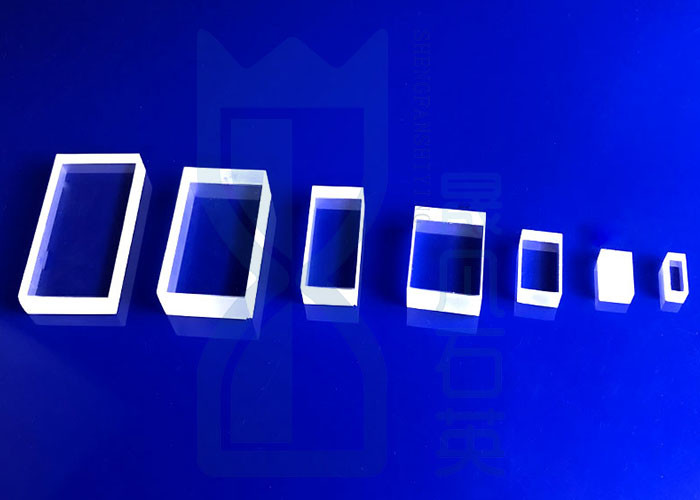

All Sides Transparent High Transmission Window Quartz Glass Plate
Product description:
1. Purity:
SiO2 content is more than 99.99%, transparent quartz glass tube can reaches above 99.95%.
2. Temperature :
Softening point temperature is about 1730 degrees Celsius ,1150 degrees Celsius in a long time used ,short-time maximum use temperature is up to 1450 degrees Celsius.
3. Anti corrosion:
Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials.
The advantages of Customized High Quality Clear Quartz Glass Flask are:
1. low thermal conductivity,
2. small expansion coefficient,
3. high temperature proof,
4. excellent thermo stability and cost lower than other quartz glass.
5. It has been widely used as long nozzle and immersion nozzle brick for the continuously flood steel,
Application of quartz labware
UVC light, LED light,Germicidal lamp
Shengfan Quartz plate characteristic | |
SIO2 | 99.9% |
Density | 2.2(g/cm³) |
Degree of hardness moh’ scale | 6.6 |
Melting point | 1732℃ |
Working temperature | 1100℃ |
Max temperature can reach in a short time | 1450℃ |
Visible light transmittance | Above 93% |
UV spectral region transmittance | 80% |
Annealing point | 1180℃ |
Softening point | 1630℃ |
Strain point | 1100℃ |
JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
The average transmittance | 90% | 85% | 85% |
Bubble class | 0 | 2 | 2 |
Birefringence | 1-2 | 1-2 | 1-2 |
Grain structure | 1 | 2 | 2 |
Fringe | 1-2 | 2 | 2 |
Uniformity | 1-2 | 2 | 2 |
Fluorescence | 1 | 2 | 2 |
Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Product raw material:
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange, quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.Covering an area of 1000 square meters, we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.With the philosophy of Technology Orientation, Quality First, Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Our Services & Strength:
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate.
