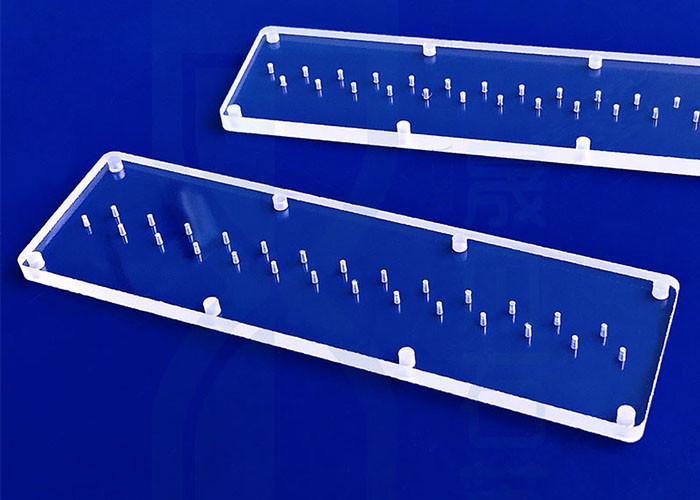

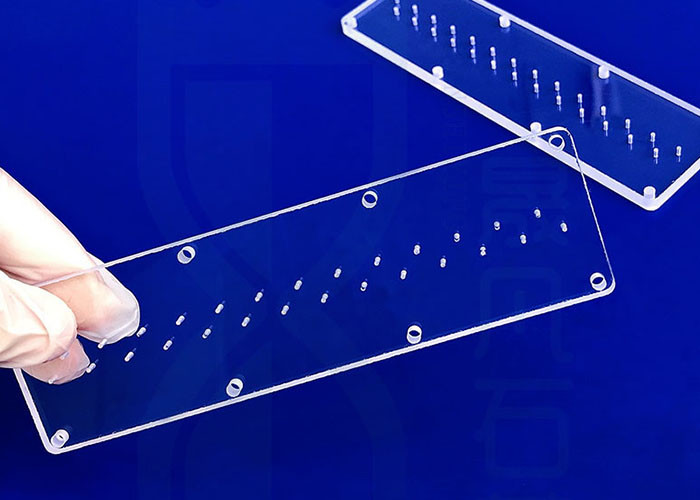

Customized Clear Uv Transparent Fused Silica Plate With Hole

  • Customized Clear Uv Transparent Fused Silica Plate With Hole
  • Customized Clear Uv Transparent Fused Silica Plate With Hole
  • Customized Clear Uv Transparent Fused Silica Plate With Hole
Place of Origin China
Brand Name shengfan
Certification ISO9001
Model Number QP-1
Minimum Order Quantity 10 pieces
Price Negotiable
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time 5-15 work days
Payment Terms L/C, T/T
Supply Ability 100,000 pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Quartz Glass Plate Material SIO2
Hardness Morse 6.5 Working Temperature 1100℃
Surface Quality 20/40 Or 40/60 Dieletric Strength 250～400Kv/cm
Light Transmittance >92%
High Light

customized transparent fused silica plate

,

transparent customized fused silica plate

,

fused silica plate with hole
Leave a Message
Product Description

Product description:

Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.

Quartz glass has excellent physical and chemical properties: high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.



Products range:

1.Quartz tube:outer diameter Φ2-450mm,thickness 0.5-20mm
2.Quartz rod (1.5-80mm)
3.Quartz plate (various shapes and
specification,scrubs,Transparency,drilling)
4.Quartz instruments (flask,test tube,beaker, quartz boat)
5.Processing all type of special shaped and customized instruments.



Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C



  JGS1(ZS-1) JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0 2 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color



Customized Clear Uv Transparent Fused Silica Plate With Hole 0

Customized Clear Uv Transparent Fused Silica Plate With Hole 1

Customized Clear Uv Transparent Fused Silica Plate With Hole 2
