Temperature Resistant Silica Sio2 Fused Quartz Plate Precision Glass Machining
Product Details
| Product Name: | Precision Glass Machining | Material: | SIO2 |
|---|---|---|---|
| Hardness: | Morse 6.5 | Working Temperature: | 1100℃ |
| Surface Quality: | 20/40 Or 40/60 | Dieletric Strength: | 250～400Kv/cm |
| Light Transmittance: | >92% | ||
| Highlight |
sio2 fused quartz plate,sio2 quartz glass sheet,fused quartz plate odm |
||
Product Description

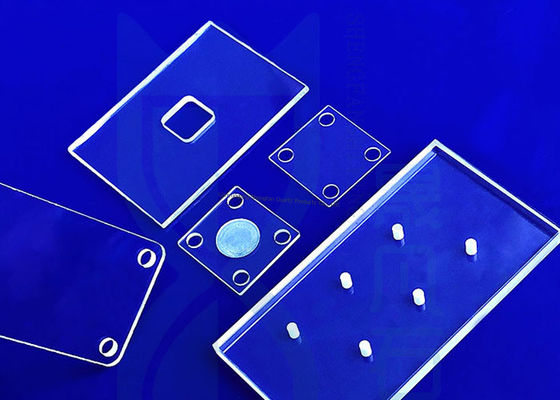

Pure Precision Glass Machining Excellent Physical Chemical Properties Quartz Glass Plate Punching
Application of quartz plate:
Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
Fused Silica Windows/quartz glass plate
UV Fused Silica Windows/quartz glass plate are precision manufactured using UV-grade synthetic fused silica. In addition to superior transmission, the synthetic fused silica of these optical windows exhibit higher thermal properties, exceptional purity, and excellent environmental durability for demanding applications.
| Diameter | 0.2-300mm |
| Thickness | 0.1-100mm |
| Dimension tolerance | +/-0.1mm or +/-0.02mm |
| Surface quality (scratch & dig) | 60/40, 40/20 or better |
| Clear aperture |
>85%, >90%
|
| Surface accuracy | λ/10 λ/2 |
| Parallelism | +/-3' ,+/-30'' |
| Bevel | 0.1~0.3mm x 45 degree |
| Coating | AR, BBAR or Custom |
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO. LTD
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
