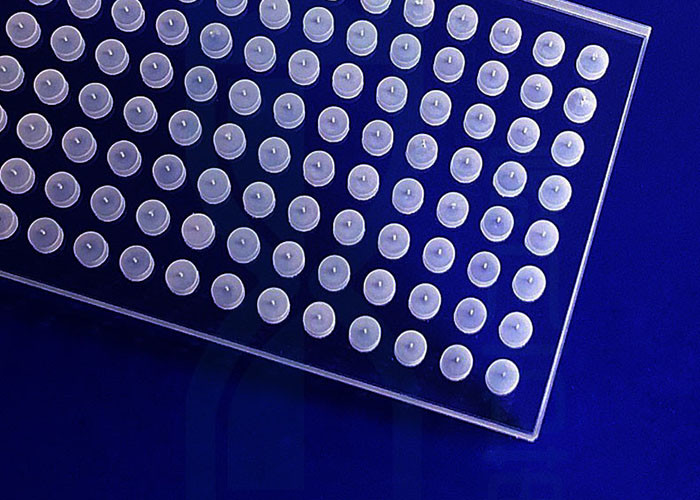

SIO2 Odm Cnc Drilling Quartz Glass Plate With Holes
Product Details
| Material: | SIO2 | Hardness: | Morse 6.5 |
|---|---|---|---|
| Working Temperature: | 1100℃ | Surface Quality: | 20/40 Or 40/60 |
| Dieletric Strength: | 250～400Kv/cm | Light Transmittance: | >92% |
| Highlight |
odm fused silica plate,odm quartz glass plate,cnc drilling quartz glass plate |
||
Product Description
Product description:
Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.
Quartz glass has excellent physical and chemical properties: high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.
Product Details
1. SiO2> 99.99% ,high purity quartz tube.
2. Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3. Excellent visual and chemical performance .
4. Without surface coating and infectant.
5. Health care and environmental protection.
6. Any dimension can be made.
7. CE.RoHs SGS approved.
Application of quartz plate:
Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
Setting Information:
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
Quartz Characteristic:
| SIO2 | 99.99% |
| Density | 2.2(g/cm3) |
| Degree of the hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Acid tolerance | 30 times than ceramic,150 times than stainless |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Resistance value | 10000 times than ordinary glass |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point |
1100℃
|
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate, quartz tube, quartz flange,quartz ring, cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
