Excellent Visual Performance High Pressure Quartz Tube , Quartz Glass Products
High Pressure Quartz Tube Details
1. SiO2> 99.99% ,tubing fused quartz
2. Operating Temperature: 1250℃,SoftenTemperature: 1730℃
3. Excellent visual and chemical performance .
4. Without surface coating and infectant.
5. Health care and environmental protection.
6. Any dimension can be made.
7. CE.RoHs SGS approved.,
GOOD PERVIOUS TO LIGHT
Quartz glass has good transmittance in all spectral bands from purple to red.
The visible light transmittance is above 93% specially in the ultraviolet spectral region.
And the maximum transmittance is over 80%.
GOOD ELECTRICAL INSULATION
The resistance of quartz glass is 10,000 times that of ordinary and has good electrical performance even at low temperature
High Pressure Quartz Tube Application
Halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.
High Pressure Quartz Tube Feature
Quartz glass hardening temperature about 1730℃.
Can be used for a long time under 1100℃.
The highest temperature can reach 1450℃.
JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
The average transmittance | 90% | 85% | 85% |
Bubble class | 0 | 2 | 2 |
Birefringence | 1-2 | 1-2 | 1-2 |
Grain structure | 1 | 2 | 2 |
Fringe | 1-2 | 2 | 2 |
Uniformity | 1-2 | 2 | 2 |
Fluorescence | 1 | 2 | 2 |
Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Shengfan Quartz plate characteristic | |
SIO2 | 99.9% |
Density | 2.2(g/cm³) |
Degree of hardness moh’ scale | 6.6 |
Melting point | 1732℃ |
Working temperature | 1100℃ |
Max temperature can reach in a short time | 1450℃ |
Visible light transmittance | Above 93% |
UV spectral region transmittance | 80% |
Annealing point | 1180℃ |
Softening point | 1630℃ |
Strain point | 1100℃ |

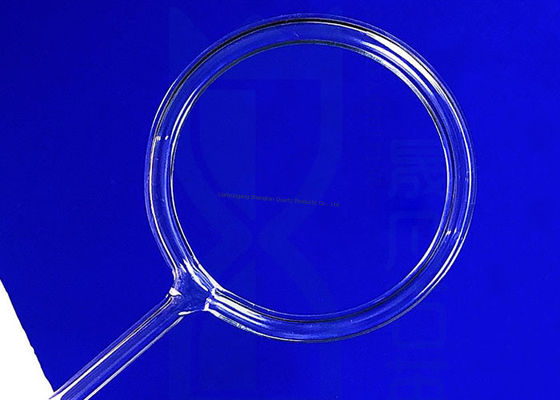

High Pressure Quartz Tube Pictures
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
