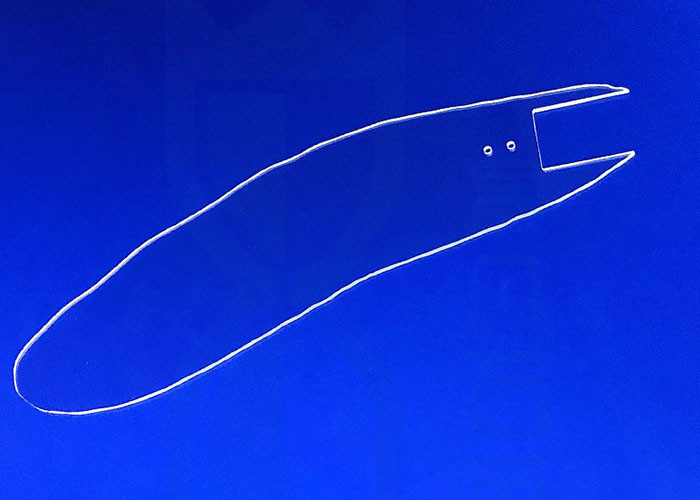

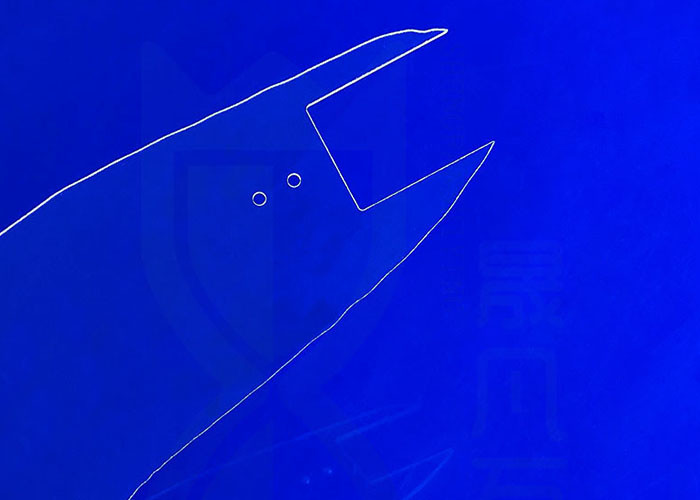

Iso Alkali Resistance Fused Quartz Plate Customized According Drawing

Advantage:

1. High purity: SiO2 >99.99%;

2. JGS1, JGS2, JGS3;

3. Excellent chemical performance for acid resistance and alkali resistance;
4. No air bubble no air line.

5. Strong transmission

6. Strict size control

7. Low OH content
8. High temperature resistance

9. Excellent electrical insulator

10. ISO 9001 Certification

11. We can accept customized according to your requirement.

12.The deep processing would be done according to client's requirements, like neat cutting, CNC milling,drilling,fire polish, bending, sealing, polished and so on.

Application of quartz plate:

Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.

Product performance:

① High Temperature Resistance:

The hardening point temperature of quartz glass is about 1730℃, and it can be used for a long time at 1100℃, with the temperature up to 1450℃.

② corrosion resistance:
Except for hydrofluoric acid, quartz glass does not react with other acid substances. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel, especially its chemical stability at low temperature, which cannot be compared with other engineering materials

③ Good Thermal Stability:
Quartz glass has a small thermal shrinkage coefficient and can withstand drastic temperature changes. Quartz glass can be heated to 1100℃ or so without bursting when it is put into normal temperature water.

④Good pervious to light
Quartz glass has good transmittance in the spectral band from violet inner line to red inner line, the visible light transmittance is more than 93%, and the transmittance in ultraviolet spectrum is more than 80%.

⑤Good electrical insulation
Quartz glass resistance value commensurate with ordinary glass ten thousand times, is a good electrical insulation material, even at low temperature has good electrical properties

Product uses:

applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications,
military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields

Production flow:

Company Introduction:

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate.
