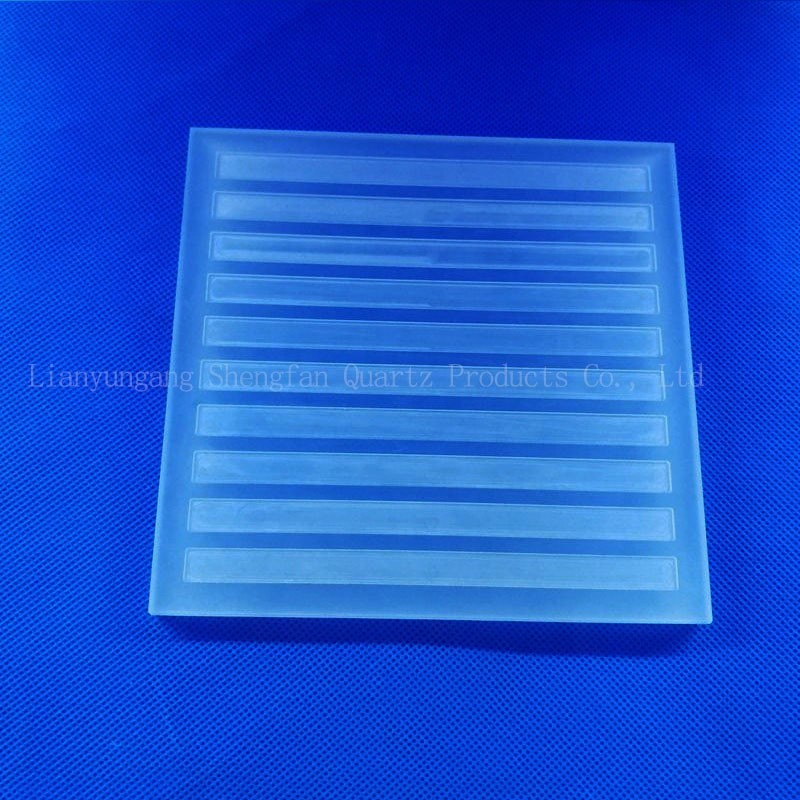

99.99% Laser Grooving Fused Silica Quartz Glass Window
Brand Name:
ShengFan
Model Number:
QSP-02
Place of Origin:
Jiangsu, China
Price:
$4.70 - $5.00/pieces
Supply Ability:
10000 Piece/Pieces per Month
Product Details
| Type: | Clear Quartz Plate | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 0.5-100mm | Shape: | Square |
| Processing Service: | Punching, Cutting, Polishing | Product Name: | Quartz Plate |
| Material: | SIO2>99.99% | Color: | Clear Transparent |
| Density: | 2.2g/cm3 | Size: | Customized |
| Working Temparature: | 1150℃ | Hardness: | Morse 6.5 |
| Melting Point: | 1732℃ | Strain Point: | 1100℃ |
| Annealing Point: | 1180℃ | Port: | Shanghai And Qindao Port |
| Highlight |
fused silica quartz glass window,laser grooving quartz glass window,laser grooving fused quartz windows |
||
Product Description
|
Shengfan Quartz plate characteristic
|
|
|
|
*Brand
|
shengfanquartz
|
|
|
*SIO2
|
99.99%
|
|
|
*Density
|
2.2(g/cm³)
|
|
|
*Degree of hardness moh’ scale
|
6.6
|
|
|
*Melting point
|
1732℃
|
|
|
* Working temperature
|
1100℃
|
|
|
*Annealing point
|
1180℃
|
|
|
*Softening point
|
1630℃
|
|
|
Setting Information
|
|
|
|
Color
|
Transparent
|
|
|
Shape
|
Circular / Round
|
|
|
Standard
|
JGS1,JGS2,JGS3
|
|
|
Visible light transmittance
|
Above 93%
|
|
|
Diameter
|
1-800mm
|
|
|
Thickness
|
0.2-100mm
|
|
|
Application
|
Optics quartz windows
|
|
|
Density
|
6.6
|
|
|
Light Transmittance
|
>92%
|
|
|
Hardness
|
Mose 6.5
|
|
|
Resistance Value
|
1000 times than ordinary glass
|
|
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.
|
Density
|
2.2x103 kg/m3
|
Hardness
|
5.5 - 6.5 Mohs' Scale 570 KHN 100
|
|
Design Tensile Strength
|
4.8x107 Pa (N/m2) (7000 psi)
|
Design Compressive Strength
|
Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
|
|
Bulk Modulus
|
3.7x1010 Pa (5.3x106 psi)
|
Rigidity Modulus
|
3.1x1010 Pa (4.5x106 psi)
|
|
Softening Point
|
1730°C
|
Annealing Point
|
1215°C
|
|
|
JGS1(ZS-1)
|
JGS2(ZS-2)
|
JGS3(HS)
|
|
Spectral characteristics
|
180-2500nm
|
200-2500nm
|
260-3500nm
|
|
The average transmittance
|
90%
|
85%
|
85%
|
|
Bubble class
|
0
|
2
|
2
|
|
Birefringence
|
1-2
|
1-2
|
1-2
|
|
Grain structure
|
1
|
2
|
2
|
|
Fringe
|
1-2
|
2
|
2
|
|
Uniformity
|
1-2
|
2
|
2
|
|
Fluorescence
|
1
|
2
|
2
|
|
Radiation Performance
|
Does not change clolor
|
Sight discoloration
|
Change color
|
Details Images
Products range:
1.Quartz glass plate(size:2-1400mm,thickness:0.1-50mm) 2.Quartz glass machining(various shapes and punching carving,deep drilling,specific quartz part) 3.Quartz rod(light bar,semicircle light bar) 4.Processing all type of special shaped and customized instruments.
production flow
Packing & Delivery
Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Our Services & Strength
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
Product Highlights
Shengfan Quartz plate characteristic *Brand shengfanquartz *SIO2 99.99% *Density 2.2(g/cm³) *Degree of hardness moh’ scale 6.6 *Melting point 1732℃ * Working temperature 1100℃ *Annealing point 1180℃ *Softening point 1630℃ Setting Information Color Transparent Shape Circular / Round Standard JGS1...
