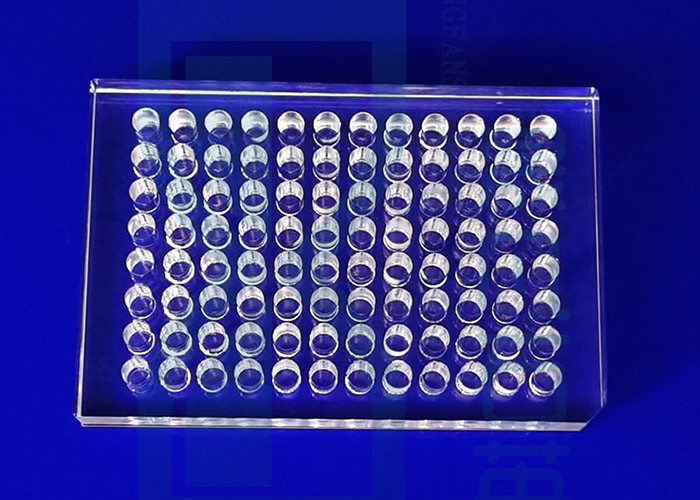

SIO2 96 Well Precision Glass Machining Flat Bottom UV Transparent Microplate
Product Details
| Product Name: | Precision Glass Machining | Material: | SIO2 |
|---|---|---|---|
| Hardness: | Morse 6.5 | Working Temperature: | 1100℃ |
| Surface Quality: | 20/40 Or 40/60 | Dieletric Strength: | 250～400Kv/cm |
| Light Transmittance: | >92% | ||
| Highlight |
Precision Glass Machining UV Microplate,96Well Precision Glass Machining,SIO2 Precision Glass Machining Flat Bottom |
||
Product Description
Product description:
Microplates, also known as microtiter plates, are rectangular multi-well plates used in a variety of assays from ELISA to PCR. Industry standard, 96-well plates are designed for all common instruments and can be used for applications such as sample collection, compound preparation, combinatorial chemistry, high throughput screening, nucleic acid purification, bacterial culture growth, and plate replication. Plates rows are typically labeled with numbers and letters; a notch in the upper right corner determines correct plate orientation. Plates are available in polypropylene or polystyrene, sterile or nonsterile formats; round or flat bottom wells, and a variety of volumes. The color of plate will affect florescence and background signal. Consider the compatibility of plate and platform before purchasing as some microplates are designed for specific equipment.
Spectral band range of 96-well quartz plate:
1) Ultraviolet optical quartz glass spectral transmission range: 220---2500nm.
2) Infrared optical quartz glass spectral transmission range: 260---3500nm.
3) Far ultraviolet optical quartz glass spectral transmission range: 185---3500nm
Features of 96-well Quartz Microplate:
96-well Quartz ELISA Plate Quartz ELISA plate is sensitive for measurement, and the design of the hole edge to prevent cross-contamination facilitates the experiment with uniform transparency and uniform pore size. It is equipped with 8-well and 12-well single strips, and it is more economical to cooperate with the ELISA plate.
96-well quartz microtiter plate use:
is suitable for enzyme-linked immunosorbent assay, cell culture analysis, immunization, identification of genetically modified products, medical clinical diagnosis, blood coagulation test analysis, etc.
Specifications:
| Length/Width | 127.8/85.5mm |
| Heigth with/without lid | 17.2/15.0mm |
| Well-to-wall distance | 9.0mm |
| Well clearance | 0.8mm |
| Single well dimensions | 7.4*7.4m㎡ |
| Single well depth | 12.9mm |
| Volum per well | 300μl |
|
Growth area per well |
0.56c㎡ |
| Coating area per well using 300μl | 2.35c㎡ |
| Inner well flatness | ±5μm |
| Whole plate flatness | ±25μm |
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate, quartz tube, quartz flange,quartz ring, cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
TEL : 00860518878938285
Mobile : 008619901512909
Wechat : shengfanquartz
E-mail : shengfanquartz@163.com
Website : https://shengfanquartz.1688.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
