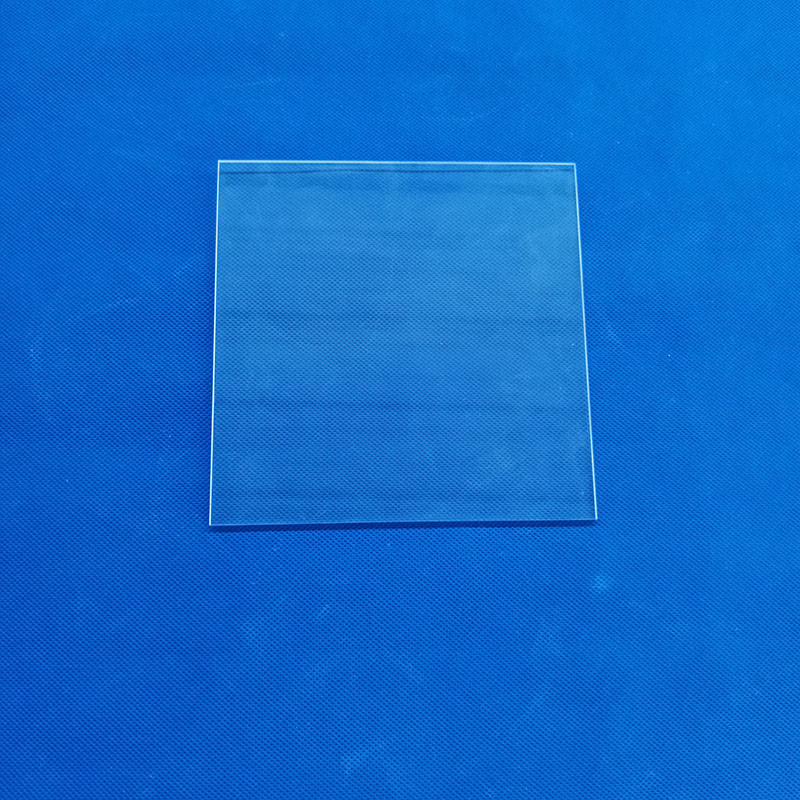

Transparent Clear Quartz Disc Sight Glass Sheet High Temperature Resistance

Place of Origin Jiangsu, China
Brand Name ShengFan
Model Number QSP-1703
Price $3.00/pieces 1-49 pieces
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Supply Ability 10000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Clear Quartz Plate Application Semiconductor, Optical
Thickness 0.5-100mm Shape Square
Processing Service Punching, Cutting Product Name Quartz Glass Plate
Material SIO2 SIO2 SIO2>99.99%
Density 2.2g/cm3 Color Clear Transparent
Working Temperature 1100℃ Melting Point 1732℃
Port Shanghai And Qindao Port
High Light

Clear Quartz Disc Transparent

,

Clear Quartz Sight Glass Sheet Disc

,

Punching Clear Quartz Glass Disc

Leave a Message
Product Description
Product Description

Shengfan Quartz plate characteristic

*Brand
shengfanquartz
*SIO2
99.99%
*Density
2.2(g/cm³)
*Degree of hardness moh’ scale
6.6
*Melting point
1732℃
* Working temperature
1100℃
*Annealing point
1180℃
*Softening point
1630℃



Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C

Setting Information

Color
Transparent
Shape
Circular / Round
Standard
JGS1,JGS2,JGS3
Material
99.99% sio2
Diameter
1-800mm
Thickness
0.2-100mm
Application
Optics quartz windows
Density
 6.6
Light Transmittance
>92%
Hardness
Mose 6.5
Resistance Value
1000 times than ordinary glass


Product Details
1. SiO2> 99.99% ,high purity quartz tube. 2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃. 3.Excellent visual and chemical performance . 4. without surface coating and infectant. 5. Health care and environmental protection. 6. Any dimension can be made. 7. CE.RoHs SGS approved.

Details Images

Transparent Clear Quartz Disc Sight Glass Sheet High Temperature Resistance 0
Transparent Clear Quartz Disc Sight Glass Sheet High Temperature Resistance 1

Transparent Clear Quartz Disc Sight Glass Sheet High Temperature Resistance 2
applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other field



Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Transparent Clear Quartz Disc Sight Glass Sheet High Temperature Resistance 3

Our Services & Strength

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
