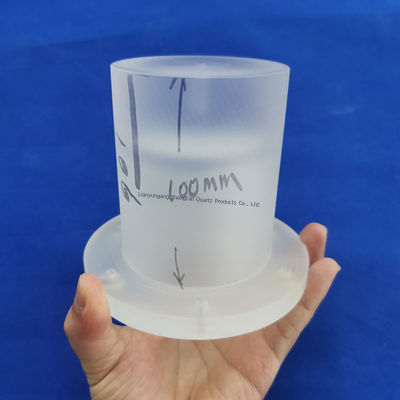

Heating Quartz Glass Tube Flange Sio2 2.2g/Cm3 High Purity Morse 6.5
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Quartz Tube Flange | Material | Sio2 |
|---|---|---|---|
| Density | 2.2g/cm3 | Hardness | Morse 6.5 |
| Working Temperature | 1100℃ | UV Transmittance | 80% |
| Electrical Resistivity | 7x107 Ohm Cm (350°C) | ||
| High Light | Morse 6.5 Quartz Glass Tube Flange,Heating Quartz Glass Flange,Quartz Glass Tube Flange 2.2 g/Cm3 |
||
Product Description
Electric Light Quartz Process Tube , Heating Tube Element Thermal Shock Stable
Quartz Flannel Plate :
Product description:
Fused clear silica quartz glass flange is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.
The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, welding, bending, sealing, polished and so on. We have rich experience in quartz flange welding to make sure the welding products dimensions.
Over the years,the company constantly introduce high-precision processing equipment,like CNC / Laser equipment / glass milling and grinding machine to insure the accuracy of the products.
applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications,
military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields
| Shengfan Quartz plate characteristic |
| *Brand | shengfanquartz |
| *SIO2 | 99.99% |
| *Density | 2.2(g/cm³) |
| *Degree of hardness moh’ scale | 6.6 |
| *Melting point | 1732℃ |
| * Working temperature | 1100℃ |
| *Annealing point | 1180℃ |
| *Softening point | 1630℃ |
| *Light Transmittance |
>92% |
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Details Images:
production line:
Packing & Delivery:
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A:DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
