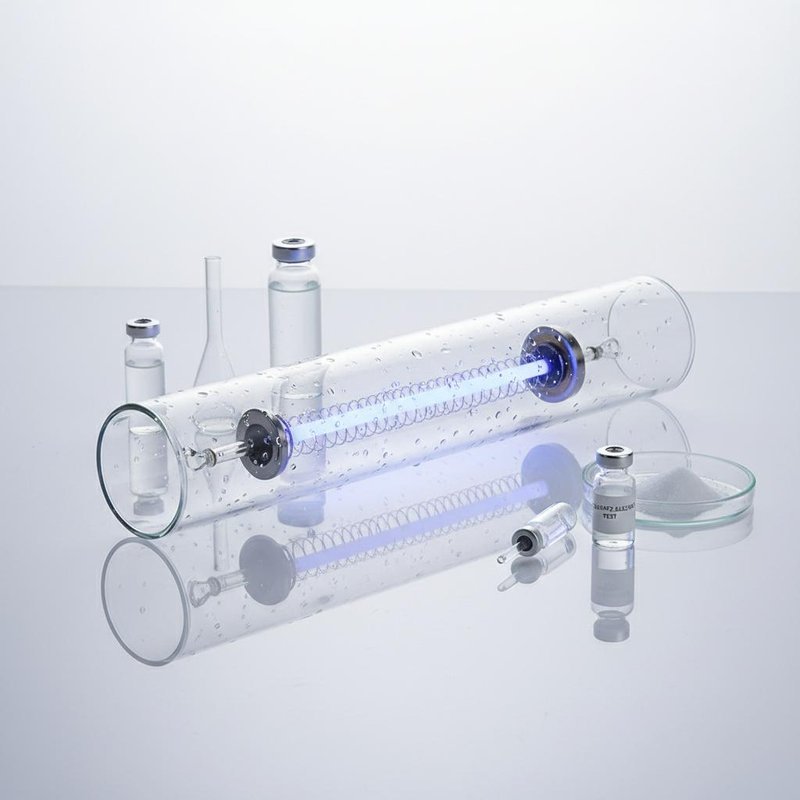

Transparent Quartz Glass Tube with Good Electrical Insulation and High Light Transmittance for Corrosion Resistant Applications
Product Details
| Name: | Quartz Glass Tube | Application: | Sources , Semiconductor |
|---|---|---|---|
| Material: | SIO2>99.99% | Feature: | Good Electrical Insulation |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Working Temperature: | 1100 Celsius | Classification: | Quartz Tube |
| Size: | OD 1-100MM | Wall Thickness: | 0.5 MM-40 MM |
| Color: | Transparent Or Opaque | ||
| Highlight |
Transparent Quartz Tube Reactor,Germicidal Lamps Quartz Glass Sleeve,0.5 MM Quartz Tube Reactor |
||
Product Description
- High durability and long service life
- Exceptional heat resistance capabilities
- Superior corrosion resistance
- Low thermal expansion coefficient
- Halogen lamps and mercury lamps
- Single-end lamps and automotive lighting
- Stage lighting and theatrical applications
- Thermoelectric boilers and heating systems
- Photocopier lamps and office equipment
- Water treatment lamp casings
- Quartz ware and piping systems
| Parameter | Value |
|---|---|
| SiO2 Content | 99.9% |
| Density | 2.2 g/cm³ |
| Mohs Hardness | 6.6 |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Maximum Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% |
| UV Spectral Transmittance | 80% |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
Product Highlights
Transparent Quartz Tube Reactor Testing Glass Sleeve For Germicidal Lamps High-Performance Quartz Glass Tubes for Industrial Applications Our transparent quartz glass tubes offer exceptional electrical insulation properties, making them ideal for light sources, semiconductors, optical communications...
XRD Sample Tank Test Sheet Carrier Chip Slotted Quartz Glass Sheet Sample Tank Can Be Customized
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Chemistry Glassware Kit
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
No Air Bubble Flat Glass Plates High Purity Quartz Glass Window Transparent Circular Sight Glasses
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
Purified Square Glass Plates High Pressure Resistant Anti Alkali Strong Hardness
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
Please use our online inquiry contact form below if you have any questions, our team will get back to you as soon as possible.
