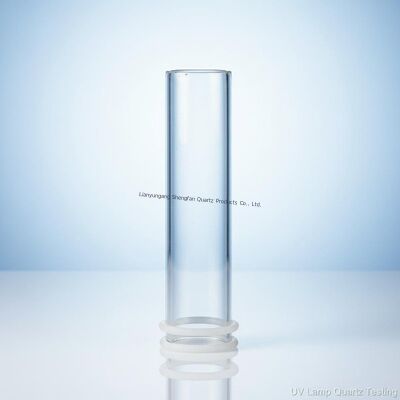

Corrosion Resistant UV Lamp Quartz Sleeve with Good Electrical Insulation and High Light Transmittance for Germicidal Lamps
Product Details
| Name: | Quartz Glass Tube | Application: | Sources , Semiconductor |
|---|---|---|---|
| Material: | SIO2>99.99% | Feature: | Good Electrical Insulation |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Working Temperature: | 1100 Celsius | Classification: | Quartz Tube |
| Size: | OD 1-100MM | Wall Thickness: | 0.5 MM-40 MM |
| Color: | Transparent Or Opaque | ||
| Highlight |
Quartz Testing Tube Reactor,UV Lamp Quartz Testing Tube,100MM Quartz Testing Tube |
||
Product Description
- Exceptional durability and longevity
- Superior heat resistance capabilities
- Excellent corrosion resistance
- Low thermal expansion coefficient
| Parameter | Value |
|---|---|
| SiO2 Content | 99.9% |
| Density | 2.2 g/cm³ |
| Hardness (Moh's Scale) | 6.6 |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Maximum Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% |
| UV Spectral Transmittance | 80% |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
Product Highlights
UV Lamp Quartz Testing Tube Reactor Glass Sleeve For Germicidal Lamps 100MM High-Performance Quartz Glass Tube for Industrial Applications Premium quartz glass tubes with excellent electrical insulation properties, designed for light sources, semiconductors, and various industrial applications. ...
XRD Sample Tank Test Sheet Carrier Chip Slotted Quartz Glass Sheet Sample Tank Can Be Customized
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Chemistry Glassware Kit
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
No Air Bubble Flat Glass Plates High Purity Quartz Glass Window Transparent Circular Sight Glasses
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
Purified Square Glass Plates High Pressure Resistant Anti Alkali Strong Hardness
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
