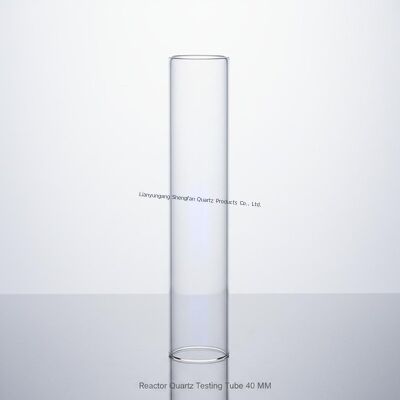

Corrosion Resistant Quartz Glass Tube with Good Electrical Insulation and High Heat Resistance for Germicidal Lamps
Product Details
| Name: | Quartz Glass Tube | Application: | Sources , Semiconductor |
|---|---|---|---|
| Material: | SIO2>99.99% | Feature: | Good Electrical Insulation |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Working Temperature: | 1100 Celsius | Classification: | Quartz Tube |
| Size: | OD 1-100MM | Wall Thickness: | 0.5 MM-40 MM |
| Color: | Transparent Or Opaque | ||
| Highlight |
Reactor Quartz Testing Tube,Quartz Glass Sleeve For Germicidal Lamps,40MM Quartz Glass Sleeve Tube |
||
Product Description
- Exceptional durability and structural integrity
- Superior heat resistance for high-temperature applications
- Excellent corrosion resistance against most acids
- Low thermal expansion coefficient for dimensional stability
| Parameter | Specification |
|---|---|
| SiO2 Content | 99.9% |
| Density | 2.2 g/cm³ |
| Mohs Hardness | 6.6 |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Maximum Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% |
| UV Spectral Transmittance | 80% |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
Product Highlights
Reactor Quartz Testing Tube Glass Sleeve For Germicidal Lamps 40 MM Premium Electrical Insulation Quartz Glass Tube High-performance quartz glass tubes designed for light sources, semiconductors, and specialized industrial applications. Material Properties Exceptional durability and structural ...
