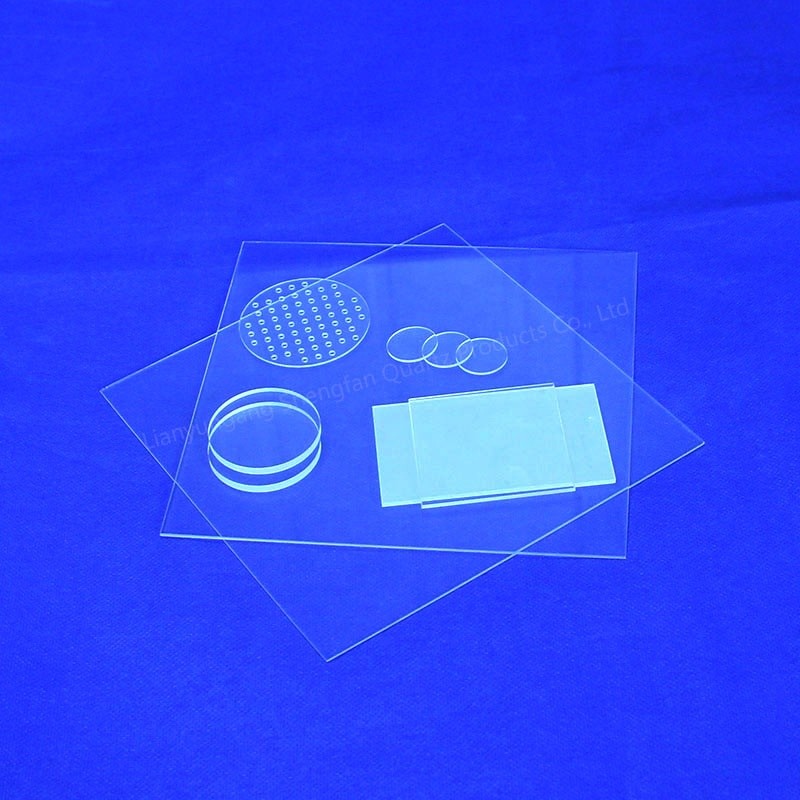

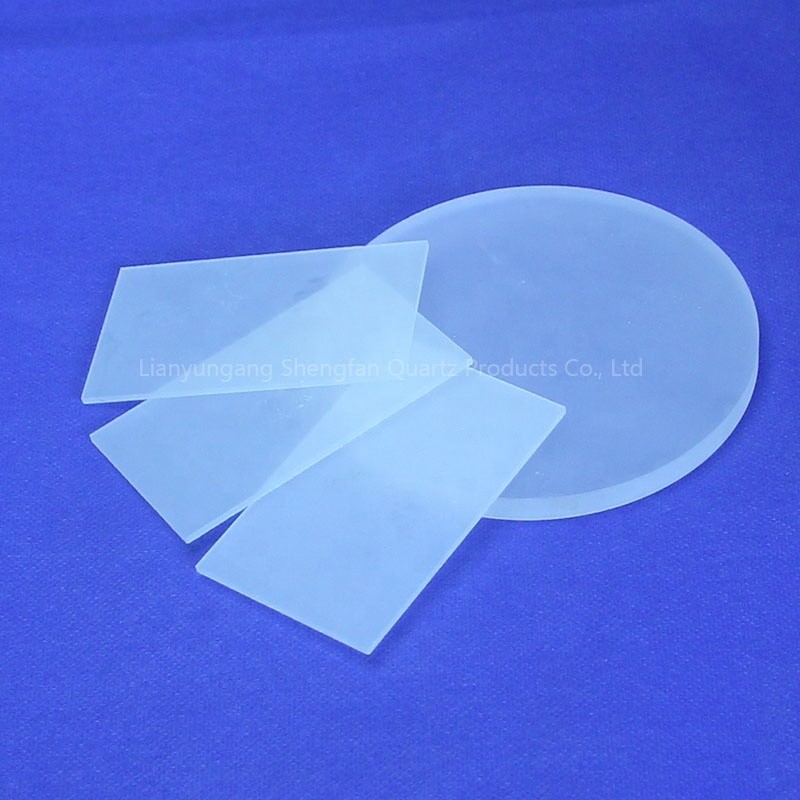

Cusomized Thermostable Quartz Glass Sheet Lens Plate For Semiconductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Clear Quartz Plate | Application | Semiconductor, Optical |
|---|---|---|---|
| Thickness | 0.5-100mm | Shape | Square |
| Processing Service | Bending, Welding, Punching, Cutting | Product Name | Quartz Plate |
| Material | SIO2>99.99% | Surface Quality | 60/40 |
| Density | 2.2g/cm3 | Working Temparature | 1150℃ |
| Hardness | Morse 6.5 | Melt Point | 1750-1850℃ |
| Acid Tolerance | 30 Times Than Ceramics,150 Times Than Stainless Steel | Size | Customized |
| Annealing Point | 1180℃ | Port | Shanghai And Qindao Port |
| High Light | Thermostable Quartz Glass Sheet,Quartz Glass Sheet Lens Plate,Quartz Glass Sheet For Semiconductor |
||
Product Description
Product Description
|
Shengfan Quartz plate characteristic
|
|
|
|
*Brand
|
shengfanquartz
|
|
|
*SIO2
|
99.99%
|
|
|
*Density
|
2.2(g/cm³)
|
|
|
*Degree of hardness moh’ scale
|
6.6
|
|
|
*Melting point
|
1732℃
|
|
|
* Working temperature
|
1100℃
|
|
|
*Annealing point
|
1180℃
|
|
|
*Softening point
|
1630℃
|
|
|
Specification
|
|
|
|
Color
|
Transparent
|
|
|
Shape
|
Circular / Round
|
|
|
Standard
|
JGS1,JGS2,JGS3
|
|
|
Material
|
99.99% sio2
|
|
|
Diameter
|
1-800mm
|
|
|
Thickness
|
0.2-100mm
|
|
|
Application
|
Optics quartz windows
|
|
|
Density
|
2.2(g/cm³)
|
|
|
Light Transmittance
|
>92%
|
|
|
Hardness
|
Mose 6.5
|
|
|
Resistance Value
|
1000 times than ordinary glass
|
|
|
Tolerance
|
±0.01
|
±0.05mm
|
±0.1mm
|
|
Surface treatment
|
60/40
|
40/20
|
|
|
Shape
|
square amd circle
|
custom shape
|
any shape can be customed
|
|
Application case
|
Remote control window
|
vacuum cup
|
germicidal lamp
|
Details Images
product uses
applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields
3D printer
3D printer
fireplac window
oven window
production flow
Packing & Delivery
Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Our Services & Strength
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
