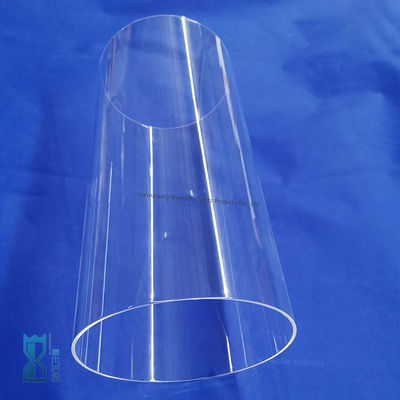

high purity quartz tube Resistance High Temperature Customizable Size Quartz Glass Tube Transparent quartz tube
Product Details
| Product Name: | Quartz Tube | Material: | SIO2 |
|---|---|---|---|
| Hardness: | Morse 6.6 | Melt Point: | 1730℃ |
| Working Temparature: | 1100℃ | Color: | Transparent |
| Density: | 2.2g/cm3 | ||
| Highlight |
Mini Oil Burner Pipe Hand Bubbler,SIO2 Mini Oil Burner Pipe,18mm Male Oil Burner Pipe |
||
Product Description
Product Description:
Quartz glass tube is made of high-quality quartz glass which is a kind of glass made from silicon dioxide. It has a tube shape and offers various transmittance and surface quality. With excellent optical properties, quartz glass tube is widely used in many industrial applications due to its superior thermal, chemical, and physical properties. It is an ideal choice for applications that require high temperatures, high pressures, and extreme purity. The quartz glass tube is an ideal material for a variety of applications and industries such as semiconductor, display, lighting, optics, laser, medical, and aerospace. It has great features, including high temperature resistance, good thermal shock resistance, excellent clarity, and low thermal expansion coefficient. It is an excellent choice for applications that involve extreme temperatures and precision.
Quartz Glass Tube, Quartz Tubes, Fused Quartz Glass Features:
- High purity :SiO2> 99.99%.
- Operating Temperature: 1250℃; Soften Temperature: 1730℃ .
- Good thermal stability,lower coefficient of thermal expansion.
- High Corrosion Resistant,acid and alkali, anti-corrosion ability.
- Excellent electrical insulation,good electrical insulation properties.
- Health care and environmental protection.
- No air bubble and no air line.
Technical Parameters:
| Property | Description |
|---|---|
| Material | Fused Quartz |
| Shape | Straight or bend |
| Density | 2.2(g/cm³) |
| Outer Diameter | 2mm~500mm |
| Purity | SiO2> 99.99% |
| Wall Thickness | 1mm~300mm |
| Length | 10mm~4000mm |
| Diameter | 2mm~600mm |
| Degree of hardness moh’ scale | 6.6 |
| Resistance to Temperature | Operating Temperature: 1250℃; Soften Temperature: 1730℃ |
| Resistance to Corrosion | 1000 times than ordinary glass |
Company Introduction:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring, cuvette and quartz instrument. The company is located in China Crystal Capital -Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 10000 square meters,we now have over 70 employees,an annual sales figure exceeding USD 20 million. With the philosophy of technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Applications:
- Shengfan SF-QT01 Quartz Glass Tube: Temperature-Resistant and Corrosion-Resistant
- Shengfan Quartz Glass Tubes are made with high-grade quartz sand, which provides superior thermal performance and excellent optical properties. Its temperature resistance is extremely high, and its resistance to corrosion is also very high. With various wall thicknesses and outer diameters, these quartz tubes are ideal for many applications.
- The Shengfan Quartz Glass Tube is an ideal choice for use in many industries due to its temperature resistance, corrosion resistance, and optical properties. It can be used for a variety of applications, from semiconductor processing to optical fiber production. It is also widely used in laboratories, medical equipment, and other high-tech industries.
- The Shengfan Quartz Glass Tube is perfect for a variety of applications due to its quartz tube and fused silica tube material. It is also highly efficient, offering superior performance and durability. These quartz glass tubes are available in various wall thicknesses and outer diameters, making them ideal for any application.
- Whether you need quartz tubes, quartz glass tubes, quartz capillary tubes, or fused silica tubes for your project, the Shengfan SF-QT01 Quartz Glass Tube is the perfect choice. With its superior temperature resistance, corrosion resistance, and optical properties, this quartz tube is the ideal choice for any application.
Customization:
Shengfan is one of the leading quartz glass tube manufacturers in China. Our quartz glass tubes provide superior resistance to pressure, radiation, and higher surface roughness. We produce our quartz glass tubes using fused quartz glass and quartz tubes, so you can be sure you are getting the best product.
Our quartz glass tubes come in various diameters and wall thicknesses, so you can find one that is tailored to your needs. Our quartz glass tubes also feature high resistance to pressure, radiation, and higher surface roughness.
Brand Name: Shengfan
Contact Information:
E-mail: amy@quartzglassproducts.com
WhatsApp/Mob.: +8617696882108
FAQ:
Q1:Are you factory?
A1:Yes, We are a professional manufacturer of quartz products with nearly 20 years of experience.
Q2:Do you have any MOQ limit?
A2:No,one piece also can be accepted.
Q3:Can you customize it?
A3:Yes, we accept customized.
Q4:Can I get sample from you?
A4:Yes,Just tell us your requirements and we will send you the samples.
Q5:What’s the delivery time?
A5:(1)For inventory the delivery time is 3-5 working days.
(2)For customized products: According to your order, the delivery time is 7 to 30 working days.
