High Purity SiO2>99.99% Fused Quartz Tube with 1100℃ Working Temperature and >92% Light Transmittance
Product Details
| Name: | Quarzt Glass Tube | Keyword: | Quartz Tube |
|---|---|---|---|
| Material: | SIO2>99.99% | OD: | 3-300mm |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Highlight |
High Purity Quartz Glass Tube,Slots Fused Quartz Tubing,300mm Fused Quartz Tubing |
||
Product Description
- High purity: SiO₂ > 99.99%
- Excellent visual and chemical performance: acid-resistant, alkali-resistant, excellent thermal stability
- Health care and environmental protection compliant
- No air bubbles or air lines
- Superior electrical insulation properties
| Density | 2.2×10³ kg/m³ | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8×10⁷ Pa (N/m²) (7000 psi) | Design Compressive Strength | Greater than 1.1×10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7×10¹⁰ Pa (5.3×10⁶ psi) | Rigidity Modulus | 3.1×10¹⁰ Pa (4.5×10⁶ psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
| Property | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Spectral Characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| Average Transmittance | 90% | 85% | 85% |
| Bubble Class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| SiO₂ | 99.9% |
| Density | 2.2 g/cm³ |
| Hardness (Mohs' Scale) | 6.6 |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Max Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% |
| UV Spectral Region Transmittance | 80% |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
Product Highlights

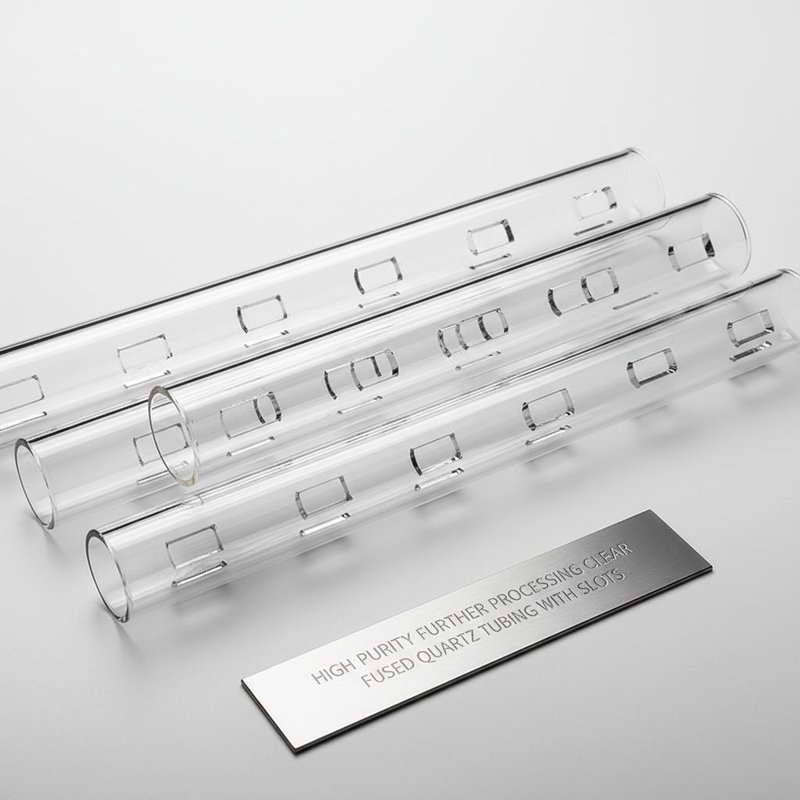

High Purity Further Processing Clear Fused Quartz Tubing With Slots Fused clear silica quartz glass tube is manufactured from high purity quartz sand, offering exceptional thermal shock stability and high transmittance. This product is widely utilized in electric lighting, laser systems, lenses, ...
