Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance
Product Details
| Name: | Quartz Glass Tube | Feature: | Corrosion Resistant/Good Thermal Stability |
|---|---|---|---|
| Material: | SIO2>99.99% | OD: | 3-300mm |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Highlight |
Winding Fused Silica Quartz Tube,Screw Thread Quartz Glass Ring,Fused Quartz Glass Tube 300mm |
||
Product Description
- High purity: SiO₂ > 99.99%
- Excellent acid and alkali resistance with superior chemical stability
- Health care and environmental protection compliance
- No air bubbles or lines for optimal clarity
- Exceptional electrical insulation properties
| Parameter | Value |
|---|---|
| SiO₂ Content | 99.9% |
| Density | 2.2 g/cm³ |
| Mohs Hardness | 6.6 |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Maximum Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% |
| UV Spectral Transmittance | 80% |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
Product Highlights

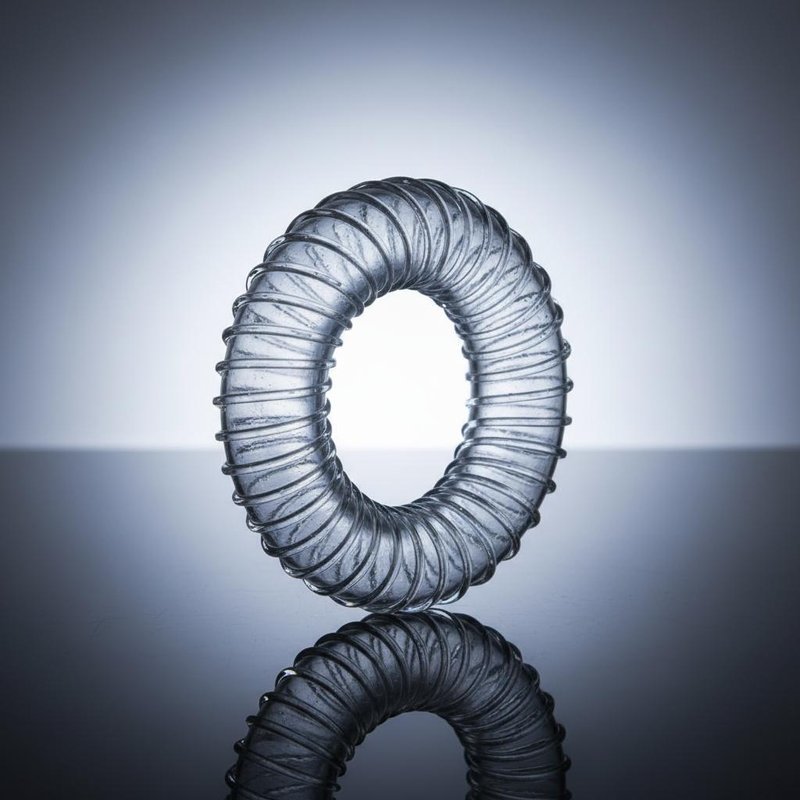

Screw Thread Winding Fused Silica Quartz Glass Tube Ring High-purity fused silica quartz glass tube rings manufactured from premium quartz sand, offering exceptional thermal shock stability and optical clarity for demanding industrial applications. Product Features High purity: SiO₂ > 99.99% ...
