Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance

Negotiable
MOQ
Negotiable
Price
Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Quartz Glass Tube
Feature: Corrosion Resistant/Good Thermal Stability
Material: SIO2>99.99%
OD: 3-300mm
Light Transmittance: >92%
Working Temparature: 1100℃
Hardness: Mose 6.5
Resistance Value: 1000 Times Than Ordinary Glass
Highlight:

Winding Fused Silica Quartz Tube

,

Screw Thread Quartz Glass Ring

,

Fused Quartz Glass Tube 300mm
Basic Infomation
Place of Origin: China
Brand Name: shengfan
Certification: ISO9001
Model Number: T-1
Payment & Shipping Terms
Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time: 15 work days
Payment Terms: L/C,T/T
Supply Ability: 100,000 pieces per month
Product Description

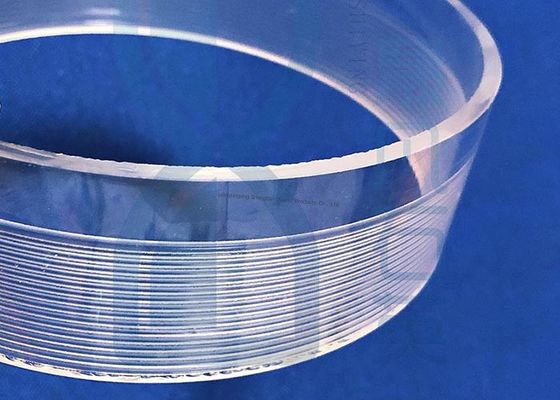

Screw Thread Winding Fused Silica Quartz Glass Tube Ring
High-purity fused silica quartz glass tube rings manufactured from premium quartz sand, offering exceptional thermal shock stability and optical clarity for demanding industrial applications.
Product Features
  • High purity: SiO₂ > 99.99%
  • Excellent acid and alkali resistance with superior chemical stability
  • Health care and environmental protection compliance
  • No air bubbles or lines for optimal clarity
  • Exceptional electrical insulation properties
High Temperature Performance
Quartz glass hardening temperature approximately 1730°C. Suitable for continuous operation at 1100°C, with maximum short-term temperature resistance up to 1450°C.
Corrosion Resistance
Exceptional chemical stability against all acids except hydrofluoric acid. Acid resistance is 30 times greater than ceramic and 150 times superior to stainless steel, particularly effective at low temperatures.
Thermal Stability
Withstands severe temperature fluctuations without damage. Can be heated to 1100°C and immediately immersed in cold water without cracking or breaking.
Optical Performance
Excellent light transmission across all spectral bands from ultraviolet to infrared. Visible light transmittance exceeds 93%, with ultraviolet spectral transmittance over 80%.
Electrical Insulation
Electrical resistance 10,000 times greater than ordinary glass, maintaining superior electrical performance even at low temperatures.
Applications
Halogen lamps, mercury lamps, single-end lamps, automotive lighting, stage lighting, thermoelectric boilers, photocopier lamps, water treatment lamp casings, quartz ware, and piping systems.
Customization Services
Available in custom sizes with grinding and polishing options to meet specific application requirements and dimensional specifications.
Technical Specifications
Parameter Value
SiO₂ Content 99.9%
Density 2.2 g/cm³
Mohs Hardness 6.6
Melting Point 1732°C
Working Temperature 1100°C
Maximum Short-term Temperature 1450°C
Visible Light Transmittance Above 93%
UV Spectral Transmittance 80%
Annealing Point 1180°C
Softening Point 1630°C
Strain Point 1100°C

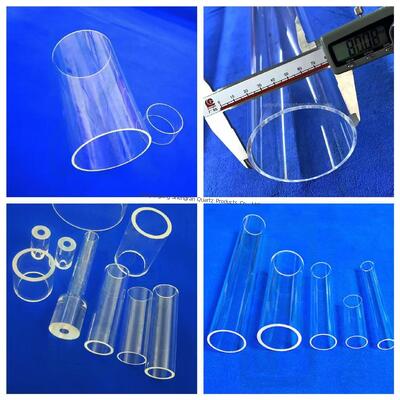

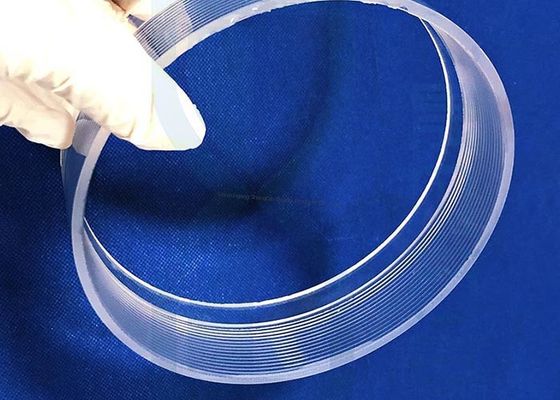

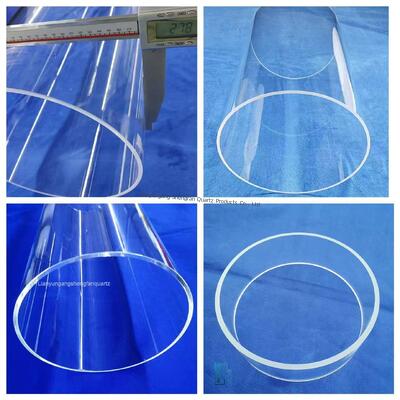

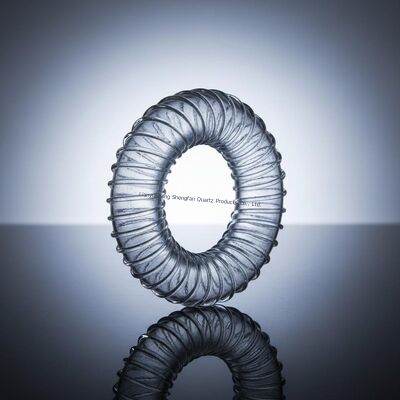

Product Images
Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance 0 Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance 1 Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance 2
Company Profile

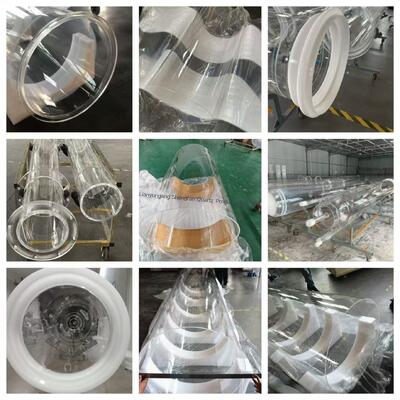

Lianyungang Shengfan Quartz Product Factory specializes in research, development, and manufacturing of quartz plates, tubes, flanges, rings, cuvettes, and quartz instruments. Located in China's Crystal Capital - Donghai City, Jiangsu Province, our 1000 square meter facility employs over 30 professionals and achieves annual sales exceeding USD 5.2 million. Guided by our philosophy of Technology Orientation, Quality First, Integrity and Responsibility, and Sustainable Operation, we are committed to establishing an international enterprise with standardized and sustainable operational capabilities.
Corrosion Resistant Fused Silica Quartz Glass Tube with Good Thermal Stability and High Light Transmittance 3
