Home /Products/Quartz Glass Plate/Customized Transparent Uv Quartz Glass Plate For Viewport Glass 100mm

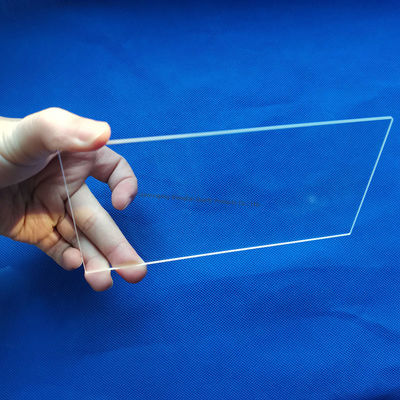

Customized Transparent Uv Quartz Glass Plate For Viewport Glass 100mm

$0.50 - $5.00/pieces
Price
Customized Transparent Uv Quartz Glass Plate For Viewport Glass 100mm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Clear Quartz Plate
Application: Semiconductor, Optical
Thickness: 0.5-100mm
Shape: Square
Processing Service: Bending, Welding, Punching, Cutting, Polishing
Product Name: Quartz Plate
Material: SIO2>99.99%
Surface Quality: 60/40
Density: 2.2g/cm3
Working Temparature: 1150℃
Hardness: Morse 6.5
Melt Point: 1750-1850℃
Acid Tolerance: 30 Times Than Ceramics,150 Times Than Stainless Steel
Size: Customized
Annealing Point: 1180℃
Port: Shanghai And Qindao Port
Highlight:

Customized Transparent Uv Quartz Glass Plate

,

Quartz Glass Plate For Viewport Glass

,

100mm Uv Quartz Glass Plate
Basic Infomation
Place of Origin: jiangsu.China
Brand Name: ShengFan
Model Number: QSP-1
Payment & Shipping Terms
Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Product Description

Shengfan Quartz plate characteristic

*Brand shengfanquartz
*SIO2 99.99%
*Density 2.2(g/cm³)
*Degree of hardness moh’ scale 6.6
*Melting point 1732℃
* Working temperature 1100℃
*Annealing point 1180℃
*Softening point 1630℃
Specification
Color Transparent
Shape Circular / Round
Standard JGS1,JGS2,JGS3
Material 99.99% sio2
Diameter 1-800mm
Thickness 0.2-100mm
Application Optics quartz windows
Density 2.2(g/cm³)
Light Transmittance >92%
Hardness Mose 6.5
Resistance Value 1000 times than ordinary glass

Application


The quartz glass plate is widely used in UVC/LED light, optical instrument, sight glass, observation window for furnace, semiconductor, photoelectron, military industry, metallurgy and test for lab.


Tolerance ±0.01 ±0.05mm ±0.1mm
Surface treatment 60/40 40/20
Shape square amd circle custom shape any shape can be customed
Application case Remote control window vacuum cup germicidal lamp
Customized Transparent Uv Quartz Glass Plate For Viewport Glass 100mm 0
Customized Transparent Uv Quartz Glass Plate For Viewport Glass 100mm 1
applied range:
This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields

Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Customized Transparent Uv Quartz Glass Plate For Viewport Glass 100mm 2

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
