1200C Polished Quartz Glass Disc SIO2 Precision Machining
Product Details
| Product Name: | Precision Glass Machining | Material: | SIO2 |
|---|---|---|---|
| Hardness: | Morse 6.5 | Working Temperature: | 1200℃ |
| Surface Quality: | 20/40 Or 40/60 | Dieletric Strength: | 250～400Kv/cm |
| Finish: | Polished | Oem/odm: | Customizable,Accept,OEM And ODM |
| Highlight |
Polished Quartz Glass Disc,SIO2 Precision Quartz Glass Disc,1200C Polished Quartz Glass Disc |
||
Product Description
Customizable Precision Glass Machining >92% Light Transmittance Fused Glass Plates Ground Polished Heat Resistant
Product description:

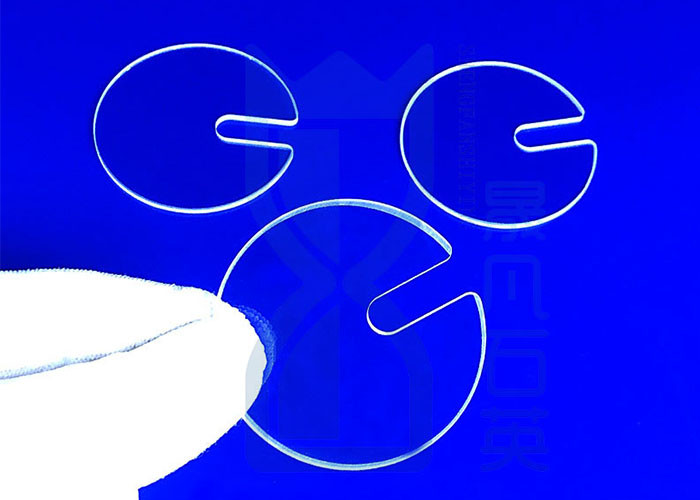

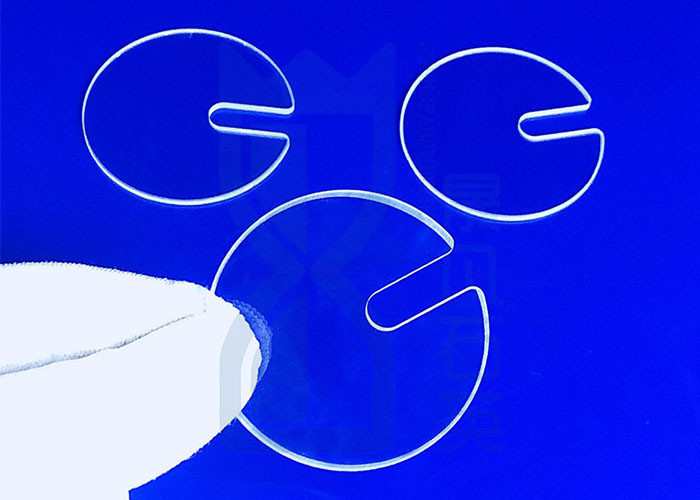

Quartz glass disc is made of fused quartz in special industrial technology glass which is a very good base material.
Quartz glass has excellent physical and chemical properties:high purity, strong transmission, strict size control, low OH content and so on. The deep processing would be done according to client's requirements, like neat cutting, punching,finish milling, fire polish, bending, sealing, polished and so on.
Application of quartz plate:
Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
Main Appilication: light, sources, semiconductor, optical, communications, military, buildingmaterials, chemical, mechanical, electrical, environmental protection and other fields.
Fused Silica Capillary Tubing Description:
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
|
|
JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
| Purity | Total Impurities, including Al, Fe, Ca, Mg, Ti, Cu, Ni,Co, Mn, k, Na, Li, B<35ppm<> |
| Thermal Data | Annealing Point Strain Point Softening Point Melting Point Expansion Index |
| Operation Temperature |
Short-term:1300°C Long-term:1100°C
|
| Mechanical Data | Rigidity Modulus 3.1×104Mpa Density 2.2/cm3 MohsHardness 6 |
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO. LTD
Address : Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
