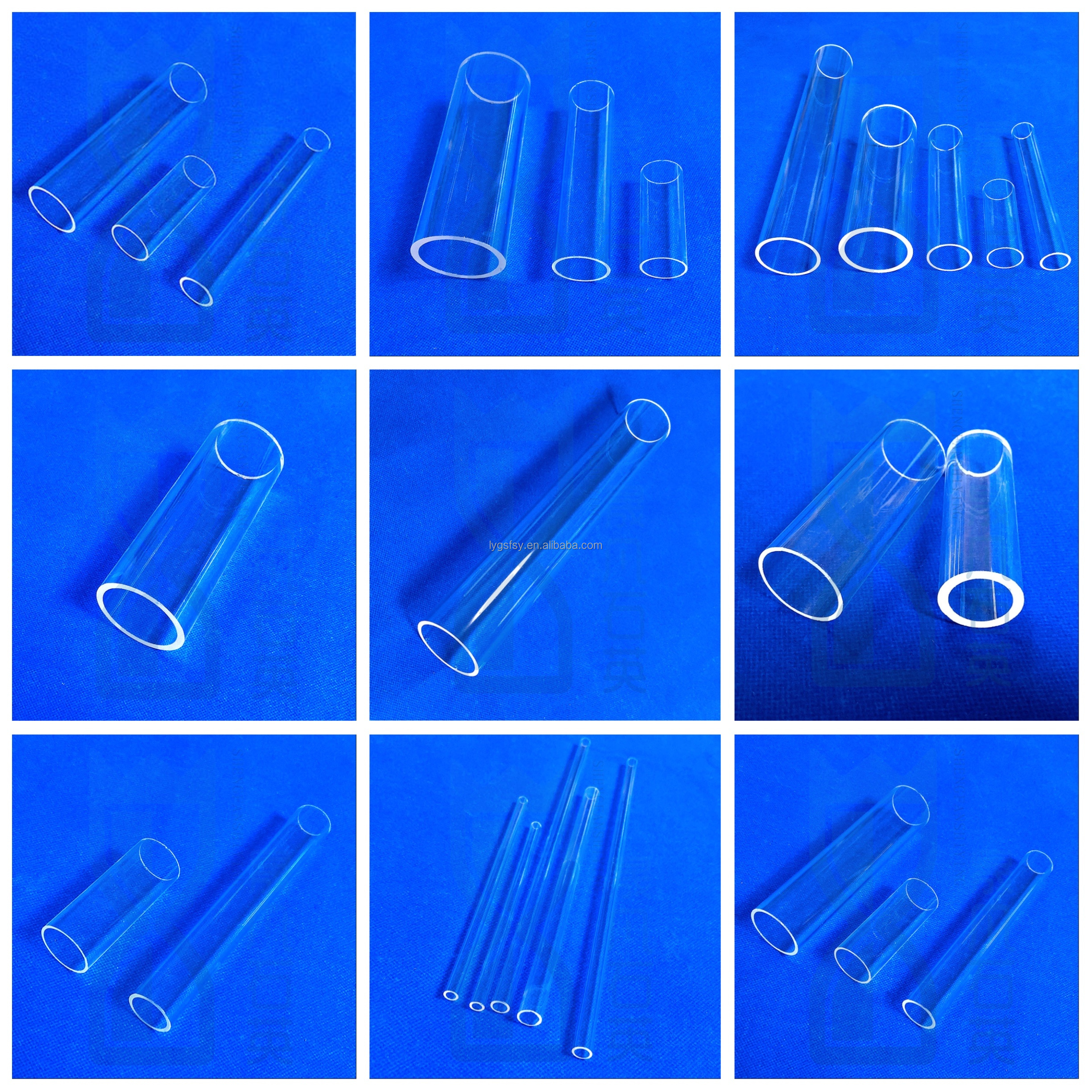

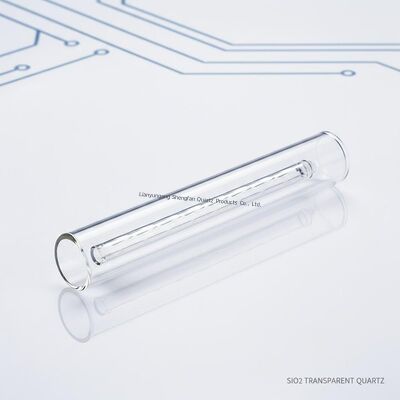

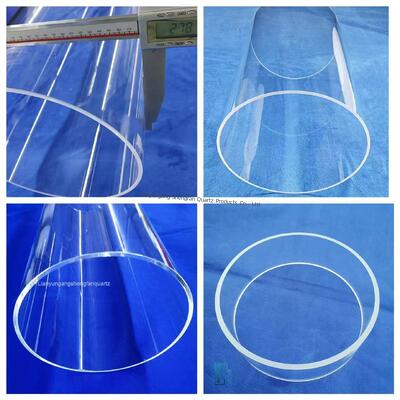

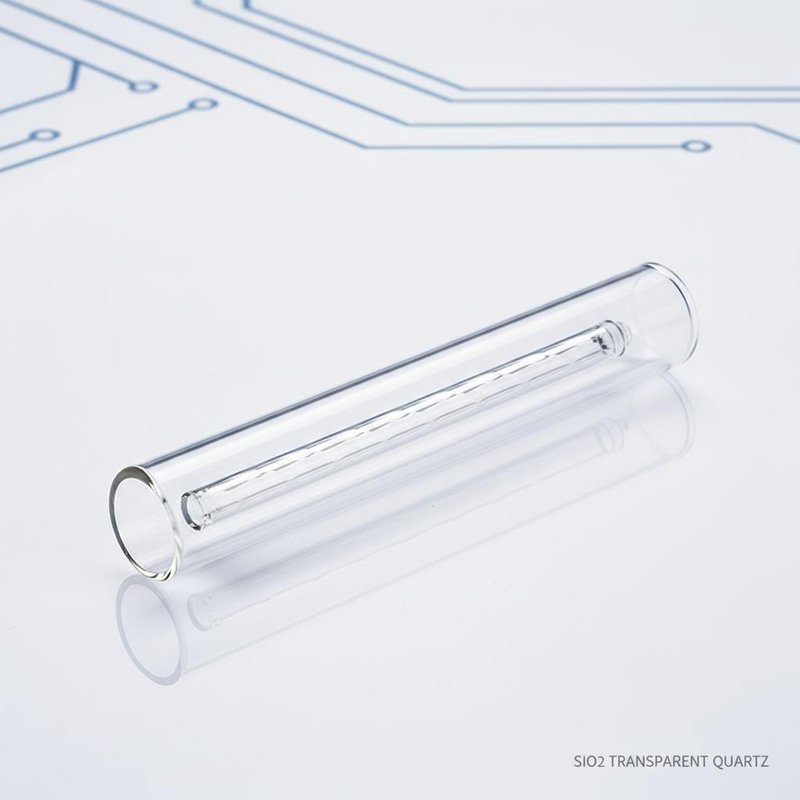

Transparent Quartz Glass Tube with Good Electrical Insulation High Light Transmittance and Corrosion Resistance
Product Details
| Name: | Quartz Glass Tube | Application: | Sources , Semiconductor |
|---|---|---|---|
| Material: | SIO2>99.99% | Feature: | Good Electrical Insulation |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Highlight |
SIO2 Transparent Quartz Glass Tube,Quartz Glass Tube Polished Fused,Electrical Insulation Quartz Glass Tube |
||
Product Description
- Exceptional durability and longevity
- Superior heat resistance capabilities
- Excellent corrosion resistance
- Low thermal expansion coefficient
| SIO2 Content | 99.9% |
| Density | 2.2 g/cm³ |
| Mohs Hardness Scale | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Maximum Short-term Temperature | 1450℃ |
| Visible Light Transmittance | Above 93% |
| UV Spectral Transmittance | 80% |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Strain Point | 1100℃ |
