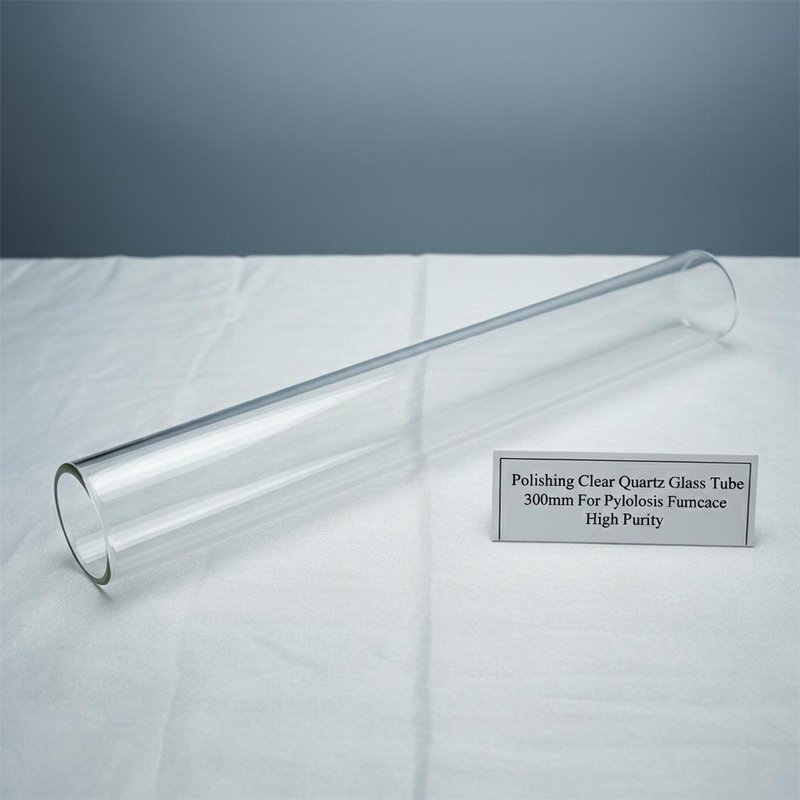

High Light Transmittance Clear Quartz Glass Tube for High Temperature and Corrosion Resistant Applications
Product Details
| Name: | Quartz Glass Tube | Feature: | High Light Transmittance |
|---|---|---|---|
| Usage: | Optical Instrument | OD: | 3-300mm |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Highlight |
Clear Polishing Quartz Glass Tube,300mm Polishing Quartz Glass Tube,Quartz Glass Tube For Pyrolysis Furnace |
||
Product Description
- High Temperature Resistance: Quartz glass hardening temperature approximately 1730°C. Suitable for long-term use at 1100°C with maximum short-term temperature resistance up to 1450°C.
- Excellent Light Transmission: Superior transmittance across all spectral bands from purple to red. Visible light transmittance exceeds 93%, with ultraviolet spectral region transmittance over 80%.
- Corrosion Resistance: Exceptional chemical stability, resistant to all acids except hydrofluoric acid. Acid resistance is 30 times that of ceramic and 150 times that of stainless steel.
- Superior Thermal Stability: Low thermal contraction coefficient withstands severe temperature changes. Can be heated to 1100°C and immersed in cold water without cracking.
| Parameter | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Spectral Characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| Average Transmittance | 90% | 85% | 85% |
| Bubble Class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Radiation Performance | Does not change color | Slight discoloration | Changes color |
Lianyungang Shengfan Quartz Product Factory is a professional manufacturer specializing in research, development, and production of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes, and quartz instruments. The company is located in China Crystal Capital - Donghai City, Jiangsu Province, China, approximately 70 km from Lianyungang port with convenient transportation access.
Operating from a 1000 square meter facility with over 30 employees, the company achieves annual sales exceeding USD 5.2 million. Guided by the philosophy of "Technology Orientation, Quality First, Integrity and Responsibility, Sustainable Operation," Shengfan Quartz is dedicated to establishing an international enterprise with standardized and sustainable operational capabilities.
The company maintains business integrity, extensive experience, competitive pricing, and quality assurance while providing excellent after-sales service. We sincerely welcome customers to discuss their quartz glass requirements.
