High Temperature Resistance Quartz Tube Flange For Chemical Industry Electric Light Source
Product Details
| Name: | Quartz Tube Flange | Feature: | High Temperature Resistance |
|---|---|---|---|
| Application: | Chemical Industry , Electric Light Source | Hardness: | Morse 6.5 |
| UV Transmittance: | 80% | Electrical Resistivity: | 7x107 Ohm Cm (350°C) |
| Highlight |
High Temperature Resistance Quartz Tube Flange,Quartz Tube Flange For Chemical Industry,Quartz 80% Transmittance Tube Flange |
||
Product Description

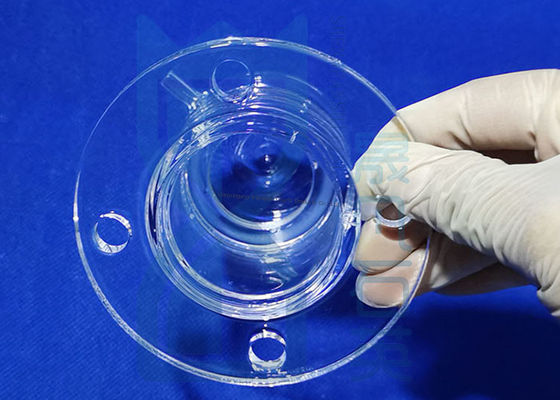

High Temperature Resistance Quartz Tube Flange For Chemical Industry , Electric Light Source
Our strength:
1, Professional quartz tubes and further processing product factory
2, Opening 6 sets of quartz tube furnce
3, Having advanced machine centra and technical glass lathe
4, Skilled international sales and service team
Advantages:
1. high quality,competitive price and elegant appearance
2. high temperature resistence and corrosion resisting
3. accurate dimension according to customs’ request
4. long time to use
Feature
HIGH TEMPERATURE RESISTANT
Quartz glass hardening temperature about 1730℃.
Can be used for a long time under 1100℃.
The highest temperature can reach 1450℃.
| Shengfan Quartz plate characteristic | |
| SIO2 | 99.9% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh’ scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
CORROSION RESISTANT
In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
Which can not be compared with any other engineering materials.
GOOD THERMAL STABILITY
The thermal contraction coefficient of quartz glass.
Can suffer severe temperature changes.
The quartz glass heated to 1100℃
also will not burst into cold water.
| JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) | |
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change clolor | Sight discoloration | Change color |
Pictures
Company profile:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
LIANGYUNGANG SHENGFAN QUARTZ PRODUCTS CO.LTD
WhatsApp:008617696882108
E-mail : amy@quartzglassproducts.com
Address : NO.169 Mingzhu Rd, Economic Development Zone, Donghai country,Lianyungang city, Jiangsu prov.,China.
