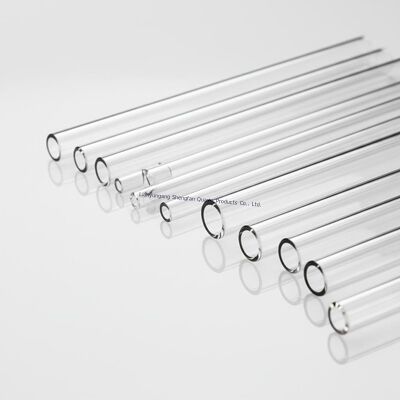

Thermal Stable Clear Quartz Glass Tube with No Air Bubble and High Light Transmittance
Product Details
| Material: | SIO2>99.99% | OD: | 3-300mm |
|---|---|---|---|
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Highlight |
Clear Color Quartz Fused Glass Tube,Quartz Fused Glass Tube Rod,No Air Bubble Quartz Tube Rod |
||
Product Description
| Type | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Spectral Characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| Average Transmittance | 90% | 85% | 85% |
| Bubble Class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain Structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change color | Slight discoloration | Changes color |
- High purity: SiO₂ > 99.99%
- Excellent visual and chemical performance: acid-resistant, alkali resistant
- Good thermal stability and health care environmental protection
- No air bubbles and no air lines
- Excellent electrical insulator properties
| SiO₂ | 99.9% |
| Density | 2.2 g/cm³ |
| Degree of Hardness (Moh's Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Max Short-term Temperature | 1450℃ |
| Visible Light Transmittance | Above 93% |
| UV Spectral Region Transmittance | 80% |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Strain Point | 1100℃ |
LIANYUNGANG SHENGFAN QUARTZ PRODUCTS CO.LTD
WhatsApp: 008617696882108
Email: amy@quartzglassproducts.com
Address: NO.169 Mingzhu Rd, Economic Development Zone, Donghai country, Lianyungang city, Jiangsu prov., China.
Product Highlights
Clear Color Quartz Fused Glass Tube Rod Thermally stable fused clear silica quartz glass tube manufactured from high purity quartz sand. Features excellent thermal shock stability and high transmittance for applications in electric lighting, laser systems, lenses, optical instruments, and high ...
XRD Sample Tank Test Sheet Carrier Chip Slotted Quartz Glass Sheet Sample Tank Can Be Customized
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Chemistry Glassware Kit
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
No Air Bubble Flat Glass Plates High Purity Quartz Glass Window Transparent Circular Sight Glasses
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
Purified Square Glass Plates High Pressure Resistant Anti Alkali Strong Hardness
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
