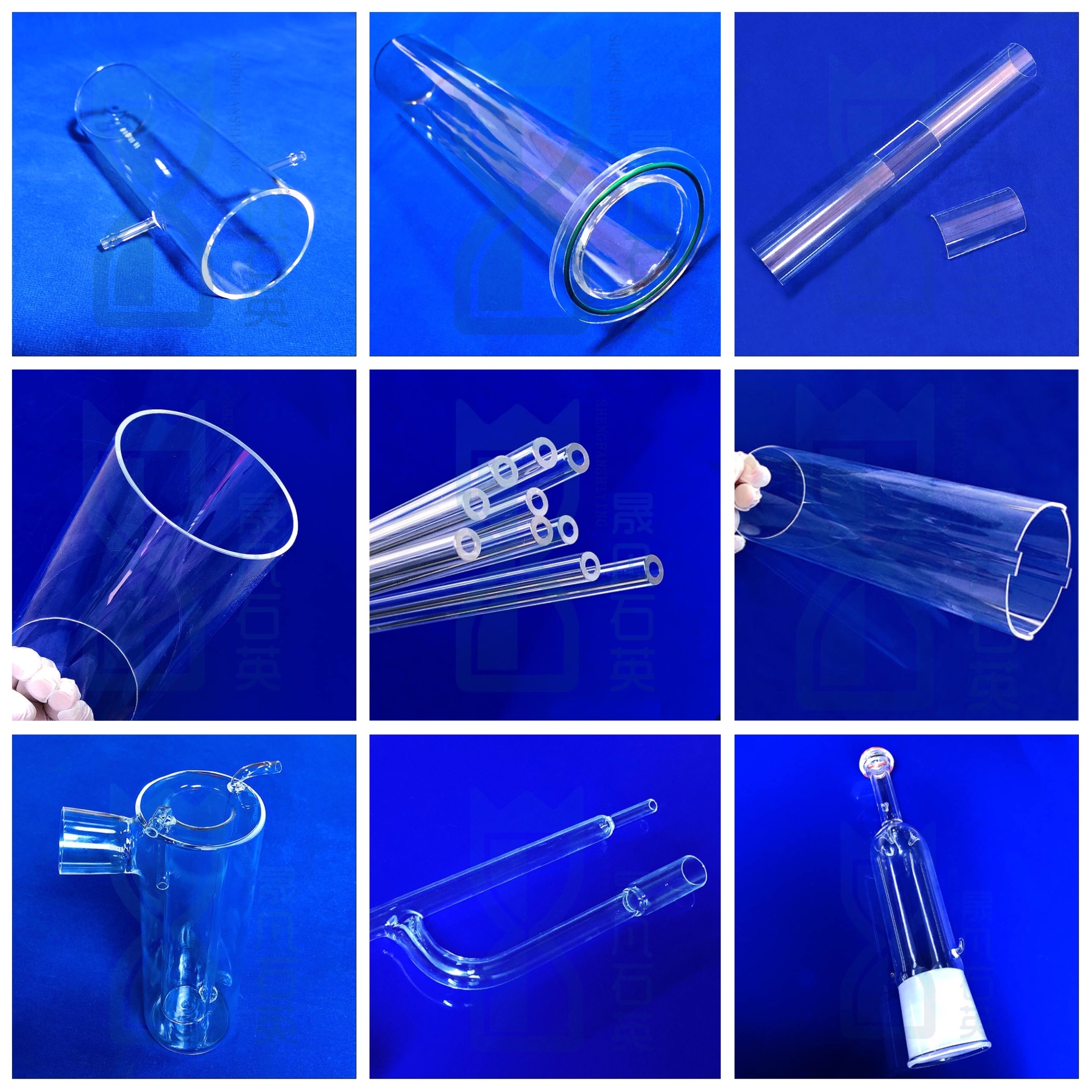

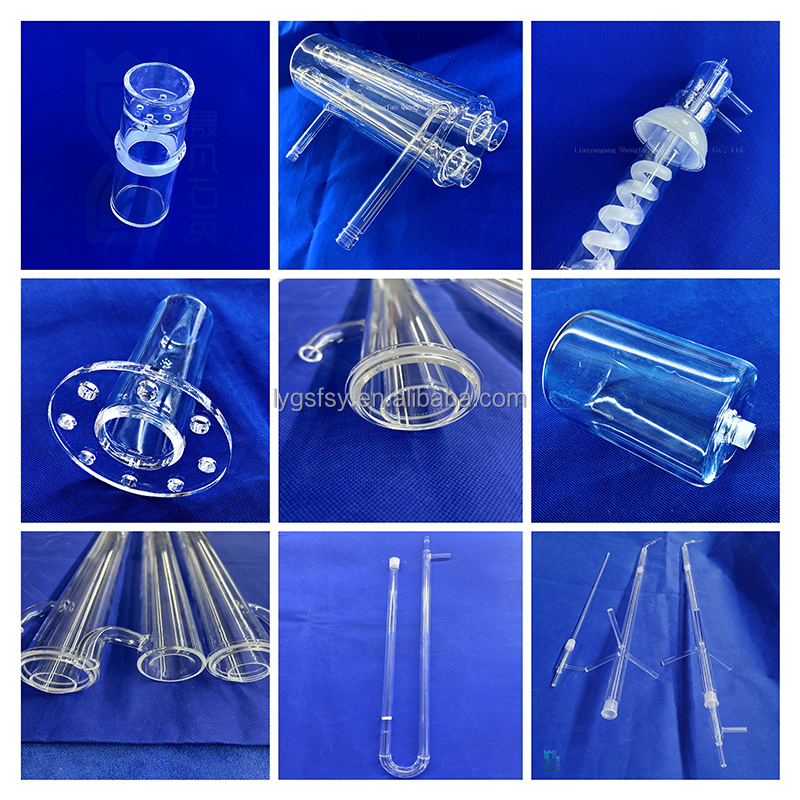

Fused Silica Capillary Quartz Glass Tube with 1100℃ Working Temperature 99.99% SiO2 Purity and High Light Transmittance
Product Details
| Product Name: | Fused Silica Capillary | Material: | SIO2>99.99% |
|---|---|---|---|
| ID: | 0.1-2mm | Wall Thickness: | 0.1-5mm |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Resistance Value: | 1000 Times Than Ordinary Glass | Type: | Clear Quartz Pipe,Laboratory Research Instruments,Opaque Quartz Pipe |
| Usage: | Laboratory Test,chemistry Test,Lab Application/packaging | ||
| Highlight |

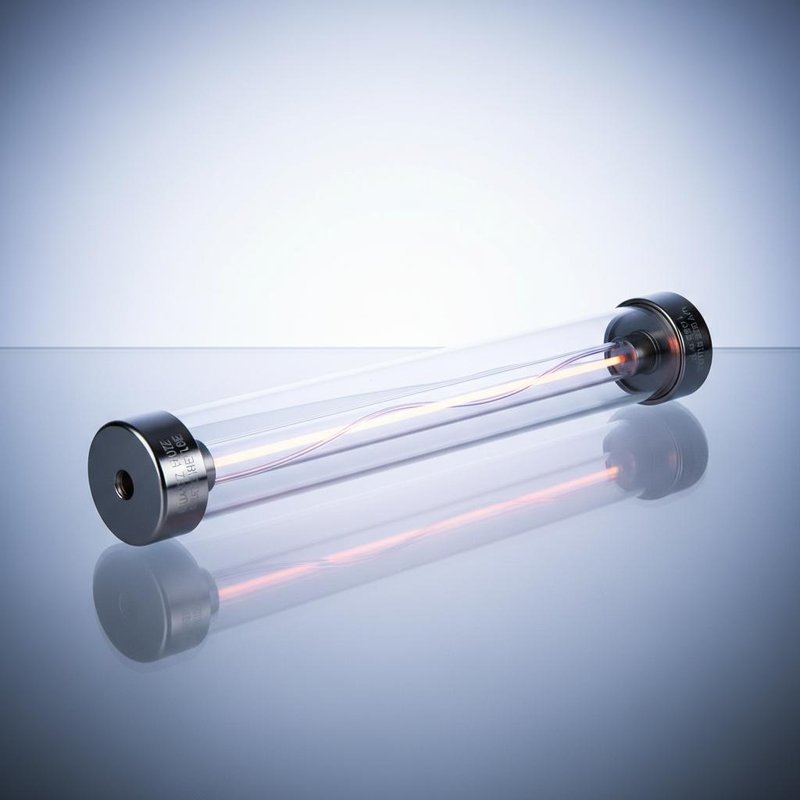

Silicon Dioxide Quartz Heater Tube,Quartz Heater Uv Glass Tube,Quartz Fused Silica Capillary Tube |
||
Product Description
| Density | 2.2x10³ kg/m³ | Hardness | 5.5 - 6.5 Mohs' Scale (570 KHN 100) |
| Design Tensile Strength | 4.8x10⁷ Pa (7000 psi) | Design Compressive Strength | Greater than 1.1x10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7x10¹⁰ Pa (5.3x10⁶ psi) | Rigidity Modulus | 3.1x10¹⁰ Pa (4.5x10⁶ psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- High purity: SiO₂ > 99.99%
- Excellent visual and chemical performance: acid-resistant, alkali-resistant, excellent thermal stability
- Health care and environmental protection compliant
- No air bubbles or air lines
- Superior electrical insulation properties
| SiO₂ Content | 99.9% |
| Density | 2.2 g/cm³ |
| Hardness (Mohs' Scale) | 6.6 |
| Melting Point | 1732°C |
| Working Temperature | 1100°C |
| Maximum Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
- PE air-cushion film wrapping
- Cardboard case
- Wooden carton
- Film wrapping
- By train, ship, or air transport
- Express delivery via DHL, FEDEX, TNT, EMS, SF, UPS or as requested
- Products shipped within 3-4 working days after full payment received
