Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary

Place of Origin China
Brand Name shengfan
Certification ISO9001
Model Number T-1
Minimum Order Quantity 10
Price Negotiable
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time 15 work days
Supply Ability 100,000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fused Silica Capillary Material SIO2>99.99%
ID 0.1-2mm Wall Thickness 0.1-5mm
Light Transmittance >92% Working Temparature 1100℃
Resistance Value 1000 Times Than Ordinary Glass Type Clear Quartz Pipe,Laboratory Research Instruments,Opaque Quartz Pipe
Usage Laboratory Test,chemistry Test,Lab Application/packaging
Highlight

Silicon Dioxide Quartz Heater Tube

,

Quartz Heater Uv Glass Tube

,

Quartz Fused Silica Capillary Tube

Leave a Message
Product Description

Silicon Dioxide Quartz Heater Tube , Uv Glass Tube 1683 Degree Celsius Softening Point Fused Silica Capillary



Fused Silica Capillary Tubing Description:



Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C

Product Description:



Fused clear silica quartz glass tube is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window.



1. High purity :SiO2> 99.99%.
2. Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
3. Health care and environmental protection.
4. No air bubble and no air line.
5. Excellent electrical insulator.



Shengfan Quartz plate characteristic
SIO2 99.9%
Density 2.2(g/cm³)
Degree of hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Visible light transmittance Above 93%

Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃

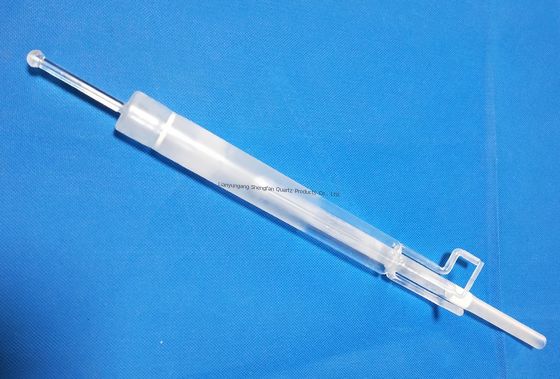

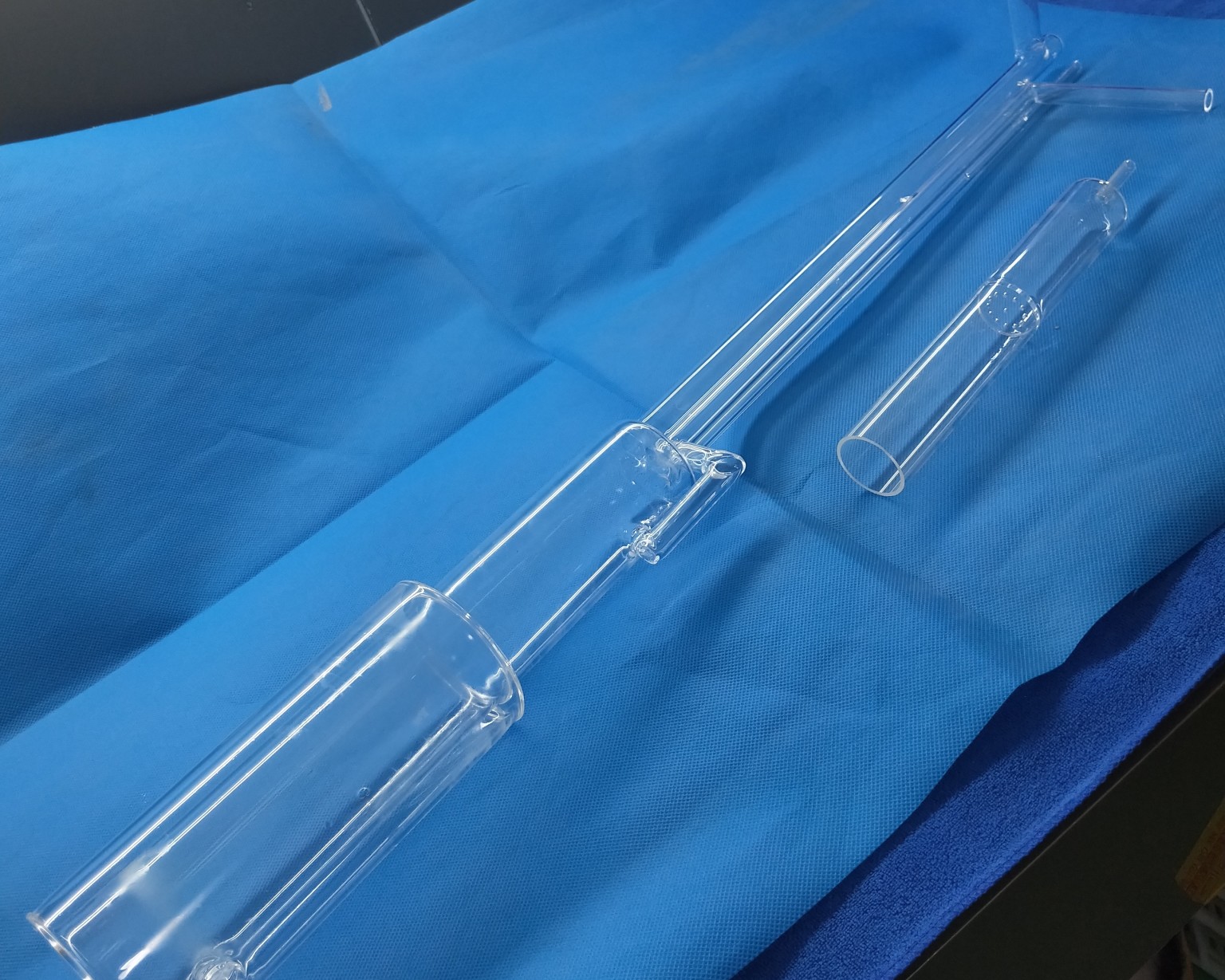

Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary 0

Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary 1

Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary 2

Application of standard clear quartz tube:

halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.



packaging&shipping:

1. PE air-cusshion film wrapping

2. Cardboard case

3. Wooden carton

4. Film wrapping

Shipping for HM High Pressure Quartz Glass Sheet For 3D Printer

1. By train, ship or air

2. By express, like DHL, FEDEX, TNT, EMS, SF, UPS or as per your request.

3. The product will be shipped within 3-4 working days after 100% payments received.







Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary 3Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary 4

Company profile:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China.

With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

Silicon Dioxide Quartz Heater Tube Uv Glass 1683 Degree Fused Silica Capillary 5
