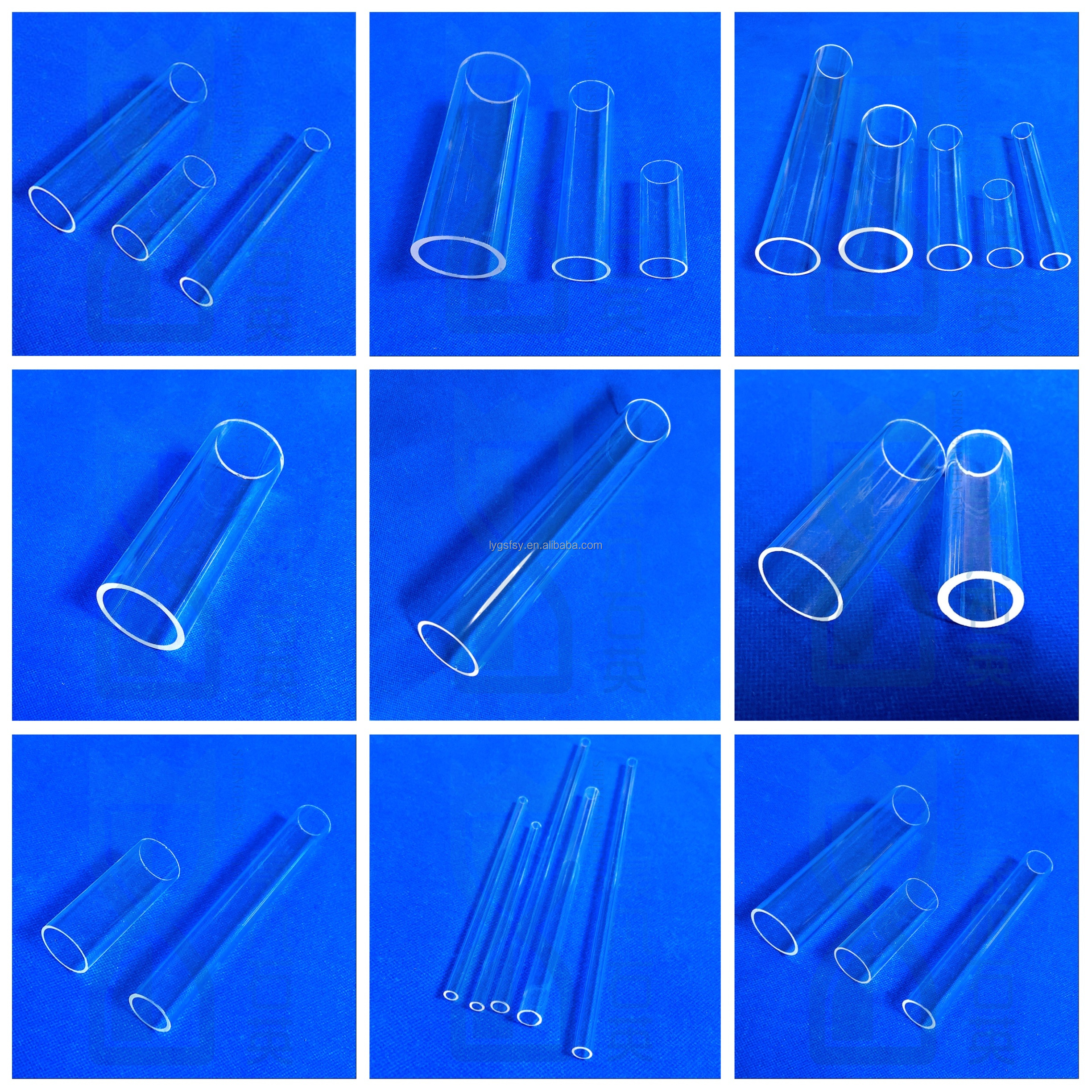

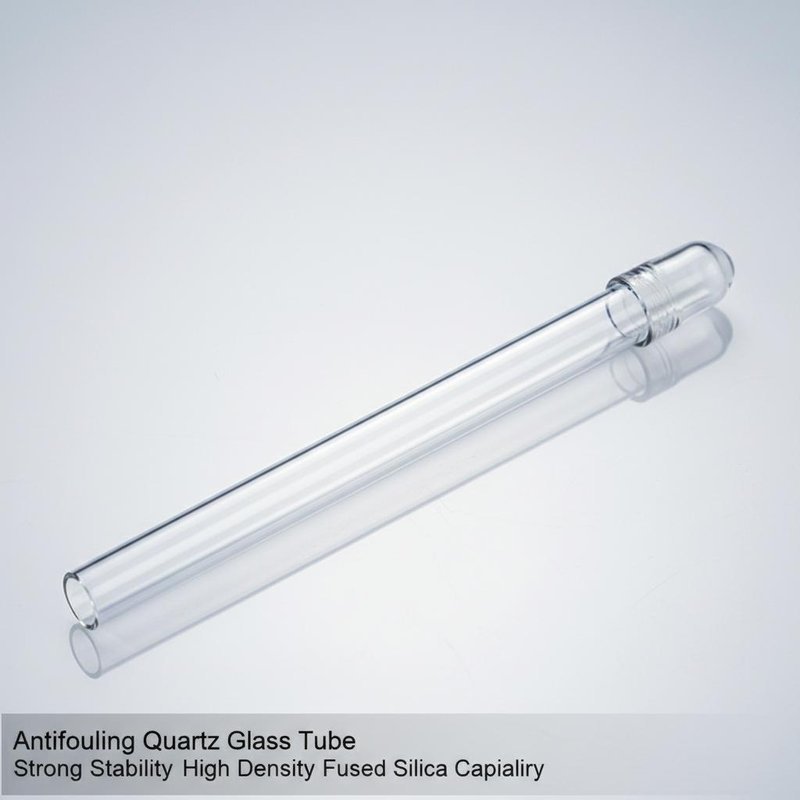

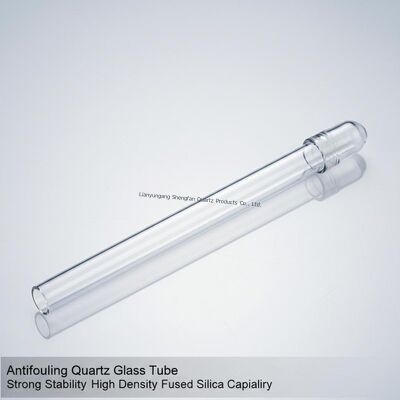

Antifouling High Density Fused Silica Capillary Tubing with Strong Stability Quartz Glass Tube
Product Details
| Product Name: | Quartz Glass Tube | Material: | Pure Quartz Glass |
|---|---|---|---|
| Capacity: | 100-850ml | Usage: | Home/hotels/restaurant |
| Working Temparature: | 1100℃ | Color: | Transparent |
| Resistance Value: | 1000 Times Than Ordinary Glass | Characters: | Make A Pleasant Sound When Cheers |
| Highlight |
Antifouling Quartz Glass Tube,Quartz Strong Stability Glass Tube,Quartz Fused Silica Capillary Glass Tubing |
||
Product Description
| Density | 2.2x10³ kg/m³ | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x10⁷ Pa (N/m²) (7000 psi) | Design Compressive Strength | Greater than 1.1 x 10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7x10¹⁰ Pa (5.3x10⁶ psi) | Rigidity Modulus | 3.1x10¹⁰ Pa (4.5x10⁶ psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- High purity: SiO₂ > 99.99%
- Excellent visual and chemical performance: acid-resistance, alkali resistance, good thermal stability
- Health care and environmental protection
- No air bubble and no air line
- Excellent electrical insulator
| Property | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Spectral characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| The average transmittance | 90% | 85% | 85% |
| Bubble class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change color | Slight discoloration | Change color |
- Quartz glass is the main raw material for bactericidal lamp shells, deep processing to various lab glassware & instruments and furnace tubes
- Light sourcing
- Semiconductor, electric heating
- Chemical industries
- Optical applications
| SiO₂ | 99.9% |
| Density | 2.2 (g/cm³) |
| Degree of hardness Mohs' scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
- PE air-cushion film wrapping
- Cardboard case
- Wooden carton
- Film wrapping
- By train, ship or air
- By express, like DHL, FEDEX, TNT, EMS, SF, UPS or as per your request
- The product will be shipped within 3-4 working days after 100% payments received
