UV Protection High Purity SiO2>99.99% Transparent Quartz Glass Tube with >92% Light Transmittance
Product Details
| Material: | SIO2>99.99% | OD: | 3-300mm |
|---|---|---|---|
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Highlight |
Precise Dimension Glass Fused Quartz Tube,Uv Protection Silica Quartz Tube,400 OD Silica Quartz Tube |
||
Product Description
| Density | 2.2×10³ kg/m³ | Hardness | 5.5 - 6.5 Mohs' Scale (570 KHN 100) |
| Design Tensile Strength | 4.8×10⁷ Pa (7000 psi) | Design Compressive Strength | Greater than 1.1×10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7×10¹⁰ Pa (5.3×10⁶ psi) | Rigidity Modulus | 3.1×10¹⁰ Pa (4.5×10⁶ psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- High purity: SiO₂ > 99.99%
- Excellent visual and chemical performance: acid-resistant, alkali-resistant, good thermal stability
- Health care and environmental protection compliant
- No air bubbles or air lines
- Excellent electrical insulator properties
| Type | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Spectral Characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| Average Transmittance | 90% | 85% | 85% |
| Bubble Class | 0 | 2 | 2 |
| Radiation Performance | Does not change color | Slight discoloration | Changes color |
| SiO₂ Content | 99.9% | Density | 2.2 g/cm³ |
| Hardness (Mohs' Scale) | 6.6 | Melting Point | 1732°C |
| Working Temperature | 1100°C | Max Short-term Temperature | 1450°C |
| Visible Light Transmittance | Above 93% | UV Spectral Transmittance | 80% |
Product Highlights

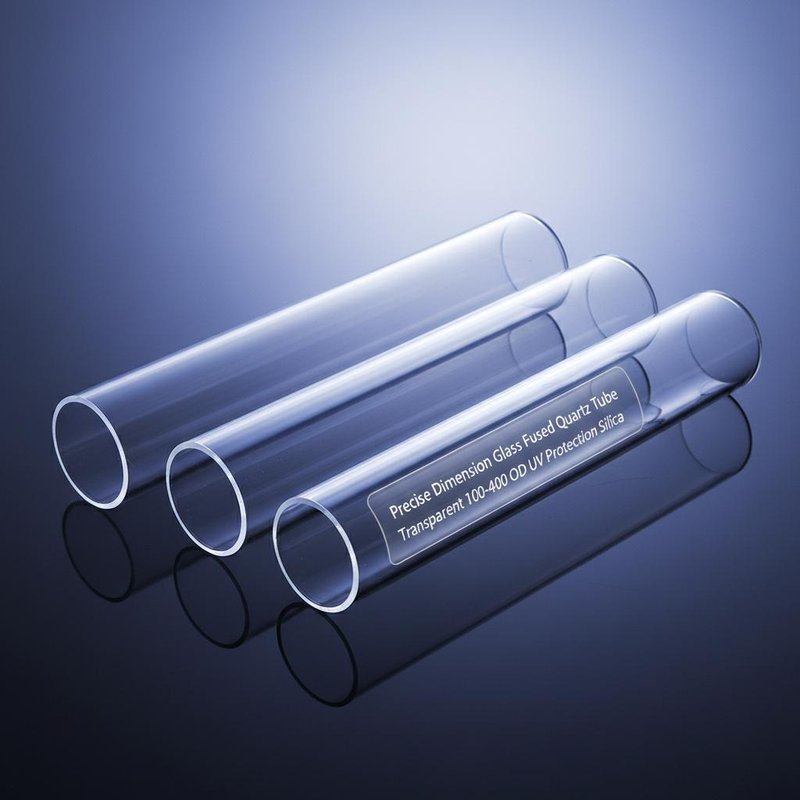

Precise Dimension Glass Fused Quartz Tube Transparent fused silica quartz tubes with 100-400 OD and UV protection, manufactured from high-purity quartz sand with excellent thermal shock stability and high transmittance. Ideal for electric lighting, laser applications, lenses, optical instruments, ...
