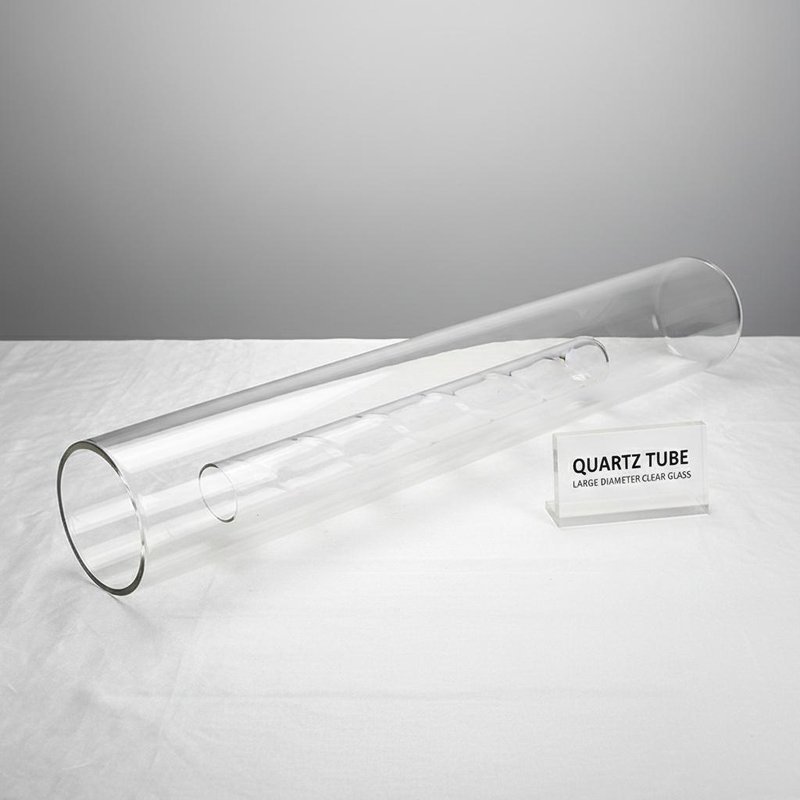

Manufacture Large Diameter High Temperature Resistant Corrosion Resistant Quartz Glass Tube
Product Details
| Color: | Clear/Transparent | Material: | SIO2>99.99% |
|---|---|---|---|
| Material Type: | JGS1/JGS2/JGS3 | Hardness: | Morse 6.6 |
| Density: | 2.2g/cm3 | Working Temparature: | 1250℃ |
| Melt Point: | 1730℃ | Resistance To Corrosion: | 30 Times Than Ceramics,150 Times Than Stainless Steel |
| Application: | Photovoltaic, Semiconductor,Lab,Industrial, Chemical, Medical,Aerospace, | ||
| Highlight |
Manufacture Quartz Clear Glass Tube,Large Diameter Quartz Clear Glass Tube,Quartz Clear Glass Tube Manufacture |
||
Product Description
- High purity: SiO₂ > 99.99%
- Operating Temperature: 1250℃; Soften Temperature: 1730℃
- Excellent thermal stability with low coefficient of thermal expansion
- High corrosion resistance to acids and alkalis
- Superior electrical insulation properties
- Environmentally friendly and health-safe
- Free from air bubbles and lines
| Property | Description |
|---|---|
| Material | Fused Quartz |
| Shape | Straight or bend |
| Density | 2.2 (g/cm³) |
| Outer Diameter | 2mm~500mm |
| Purity | SiO₂ > 99.99% |
| Wall Thickness | 1mm~300mm |
| Length | 10mm~4000mm |
| Diameter | 2mm~600mm |
| Degree of hardness moh' scale | 6.6 |
| Resistance to Temperature | Operating Temperature: 1250℃; Soften Temperature: 1730℃ |
| Resistance to Corrosion | 1000 times greater than ordinary glass |
WhatsApp/Mobile: +8617696882108
Address: East Economic Development Zone, Donghai County, Lianyungang, Jiangsu, China
Product Highlights
Large Diameter Quartz Clear Glass Tube Quartz glass tube is manufactured from high-quality quartz glass composed of silicon dioxide. Available in tube form with various transmittance levels and surface qualities, it delivers exceptional optical properties along with superior thermal, chemical, and ...
XRD Sample Tank Test Sheet Carrier Chip Slotted Quartz Glass Sheet Sample Tank Can Be Customized
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Chemistry Glassware Kit
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
No Air Bubble Flat Glass Plates High Purity Quartz Glass Window Transparent Circular Sight Glasses
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
Purified Square Glass Plates High Pressure Resistant Anti Alkali Strong Hardness
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
