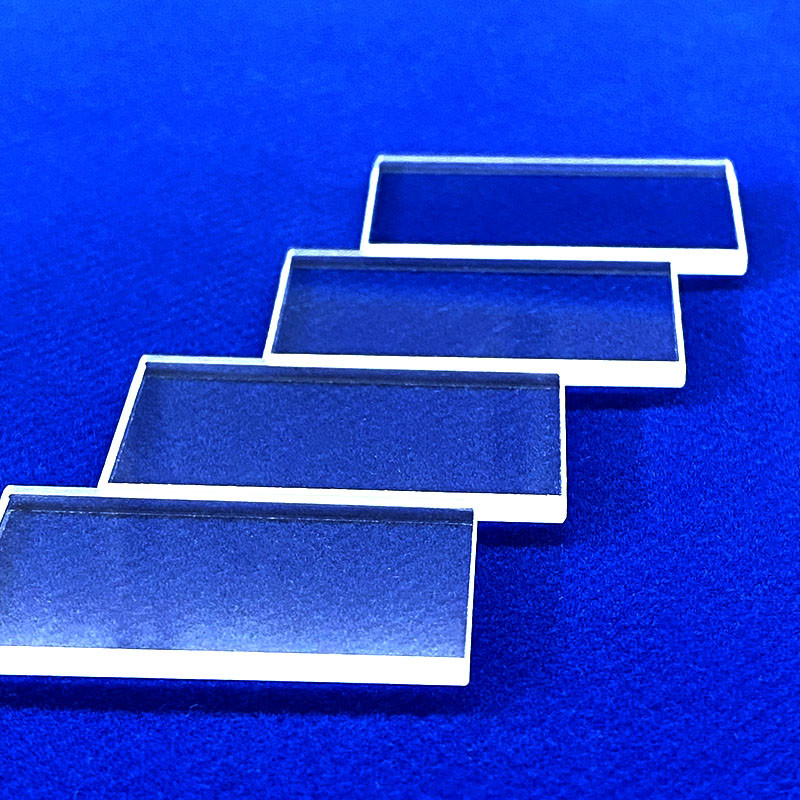

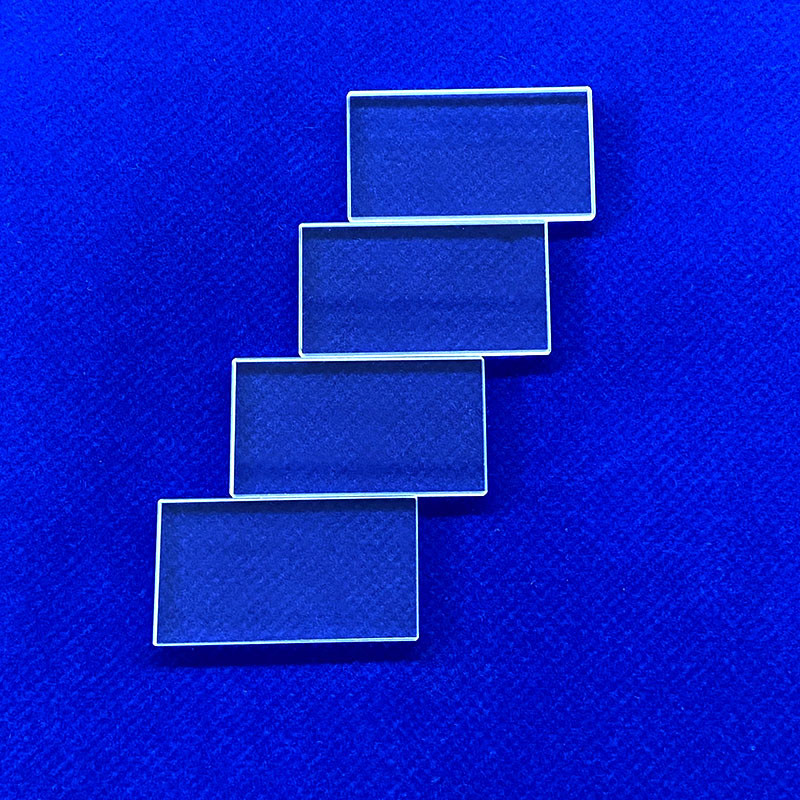

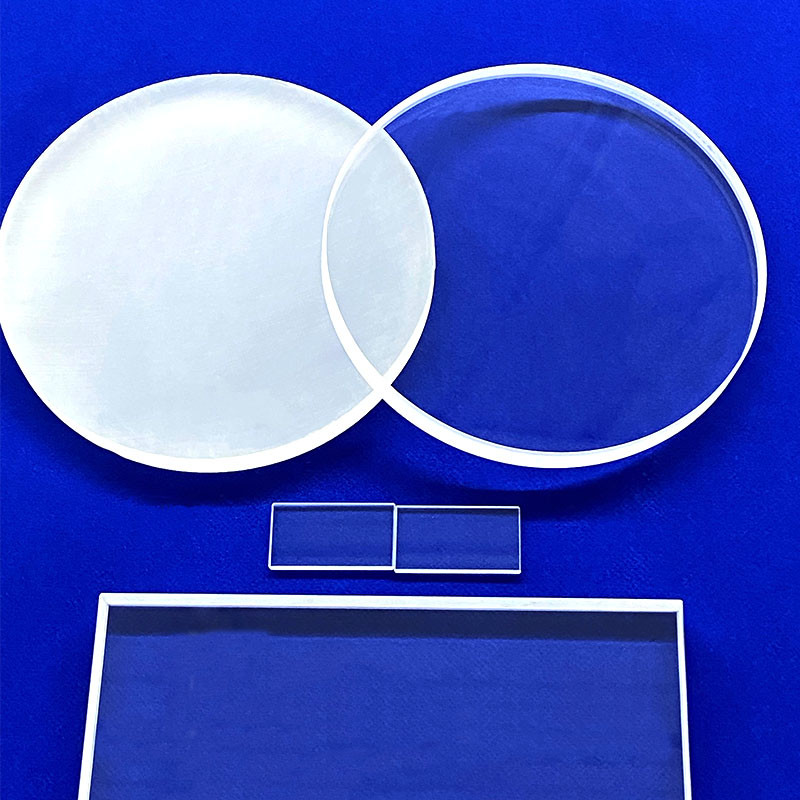

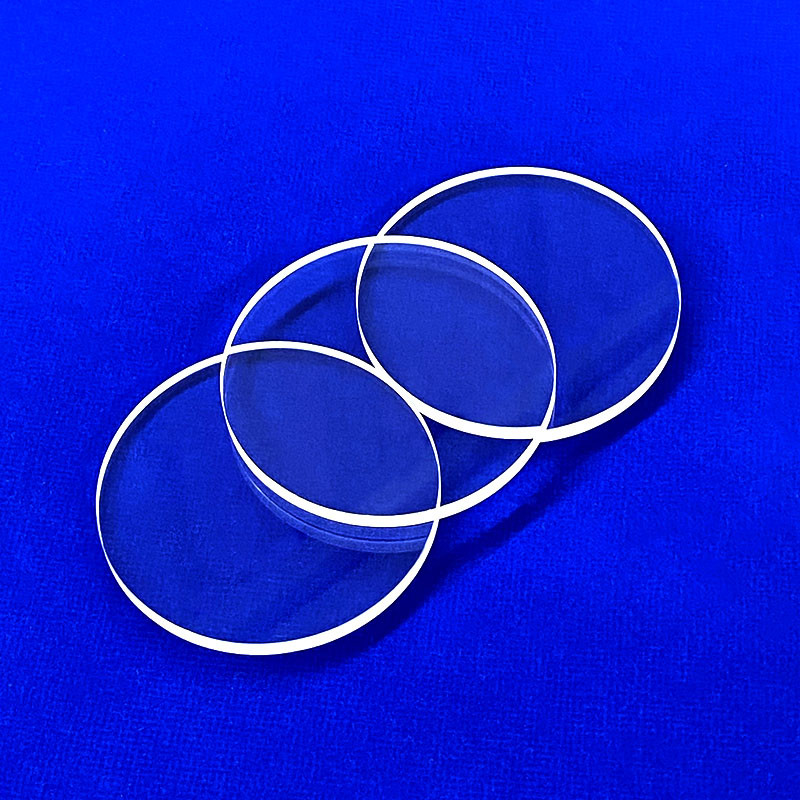

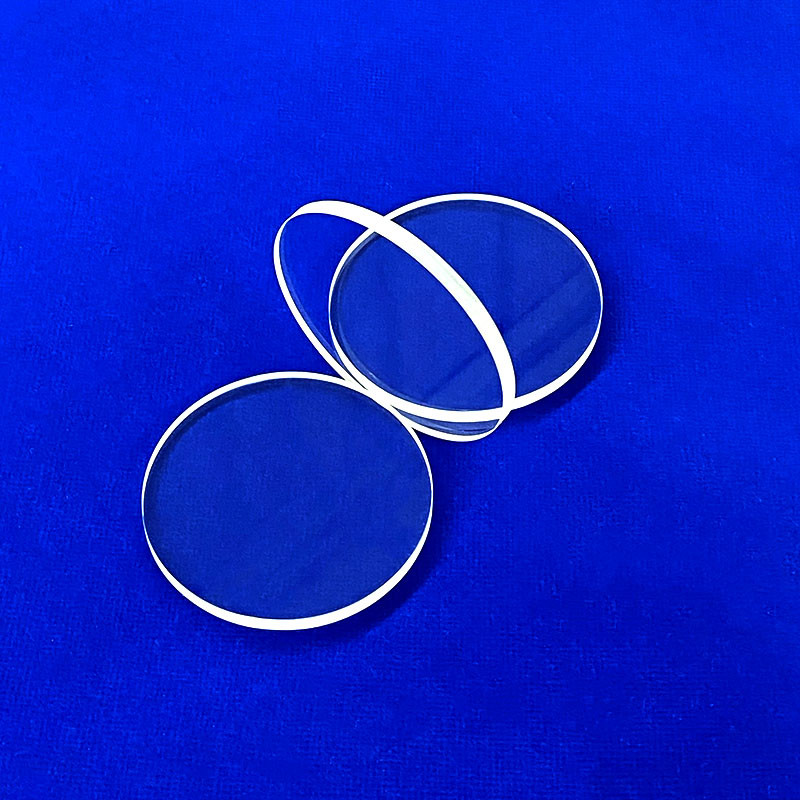

Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate

  • Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate
  • Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate
  • Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate
  • Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate
  • Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate
  • Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate
Place of Origin jiangsu.China
Brand Name ShengFan
Certification ROSH SGS
Model Number QSP-1
Minimum Order Quantity 1pcs
Price $0.50 - $10.00/pieces
Packaging Details plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Supply Ability 10000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Clear Quartz Plate Application Semiconductor, Optical
Thickness 0.5-100mm Shape Square
Processing Service Bending, Welding, Punching, Polishing Product Name Quartz Plate
Material SIO2>99.99% Density 2.2g/cm3
Working Temparature 1150℃ Hardness Morse 6.5
Melt Point 1750-1850℃ Acid Tolerance 30 Times Than Ceramics,150 Times Than Stainless Steel
Size Customized Annealing Point 1180℃
Strain Point 1100℃ Port Shanghai And Qindao Port
High Light

quartz window plate

,

polished quartz plate

,

fused silica quartz plate
Leave a Message
Product Description


Shengfan Quartz plate characteristic

*Brand shengfanquartz
*SIO2 99.99%
*Density 2.2(g/cm³)
*Degree of hardness moh’ scale 6.6
*Melting point 1732℃
* Working temperature 1100℃
*Annealing point 1180℃
*Softening point 1630℃

Setting Information
Color Transparent
Shape Circular / Round
Standard JGS1,JGS2,JGS3
Material 99.99% sio2
Diameter 1-800mm
Thickness 0.2-100mm
Application Optics quartz windows
Density  6.6
Light Transmittance >92%
Hardness Mose 6.5
Resistance Value 1000 times than ordinary glass
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 0
1.Square piece regular four kinds of corner
2.Shaped quartz plates are producedby providing samples or drawings
Unit: mm
Remarks:In addition there are requirements such as tolerance, polish, translucency, etc. can beprovided according to demand.
We can customize any size quartz glass plate according to your drawing.
【Application scope】:Used to make semiconductors, electric light source device, semi-conductor communication devices, lasers,
optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments, chemical industry,
electronics, metallurgy and other industries.
【Product advantages】: not easy to be corroded, can withstand high temperature, beautiful appearance, compact structure, easy to operate, strong light transmission, good electrical insulation.
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 1
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 2Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 3Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 4Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 5Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 6Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 7Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 8
Production process:
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 9
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 10Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 11
Application:
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 12
Product use:
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 13
Packing & Delivery​:
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 14
Company Introduction:
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
Quartz Plate Fused Silica Quartz Glass Wafer Polished Quartz Window Plate 15
Our Services & Strength
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate.

FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
